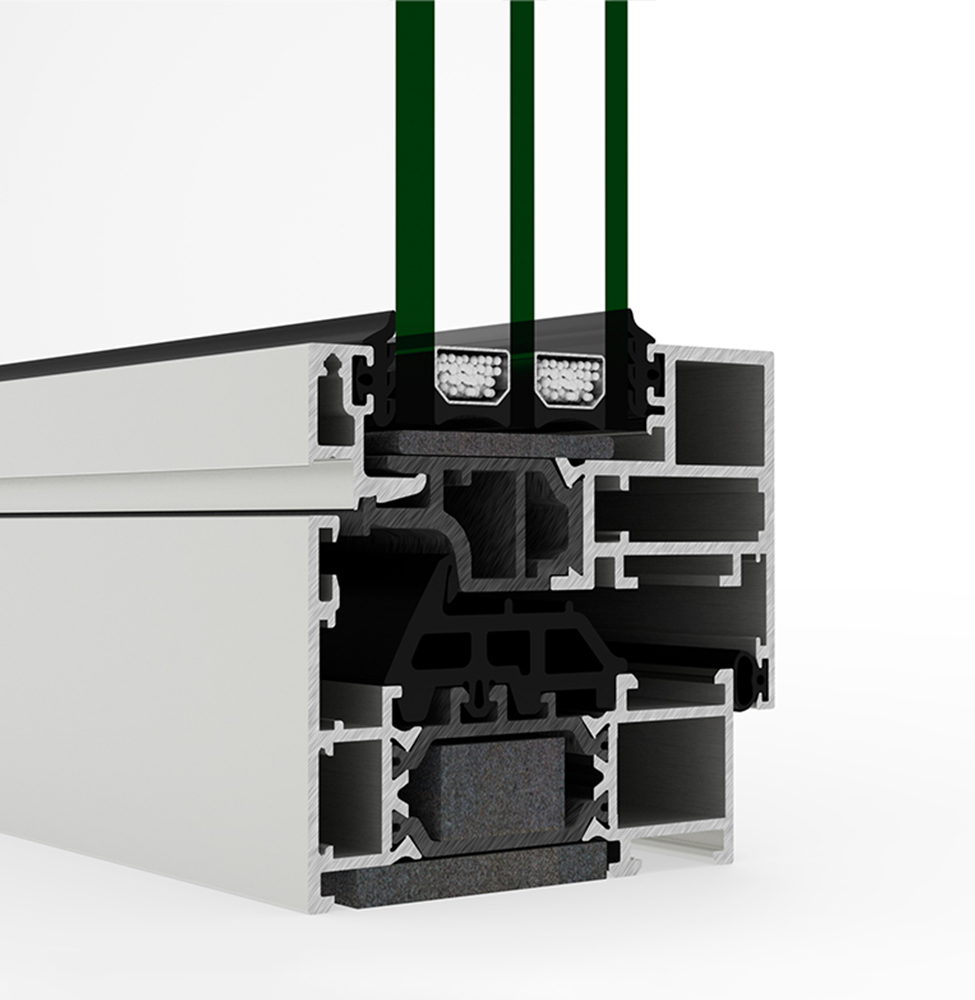

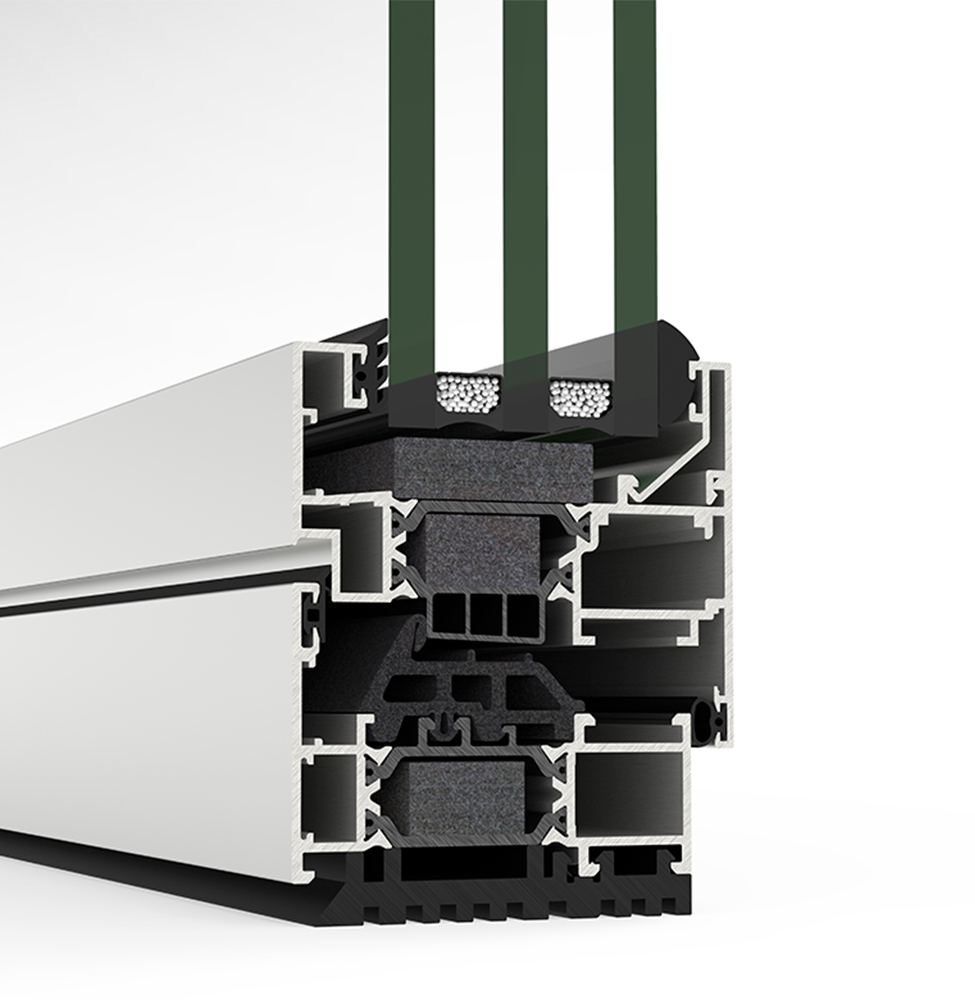

This 70 mm frame depth hinged system offers great thermal and acoustic performance combined with very simple fabrication, which is why it has become one of the most demanded series for aluminium windows, doors and balconies.
Possibilities
» Security hardware
» Concealed hinges
» Concealed drainage
» Concealed handle
» Blind integrated glazing bead
Glazing
Max. 63 mm, Min. 6 mm
Max. 40 mm, Min. 26 mm (Half-Hidden Sash)
Opening possibilities
Inward opening
Side hung
Tilt & turn
Parallel Sliding
Tily only
Outward opening
Side hung
Top hung
Pivoting on horizontal or vertical axis

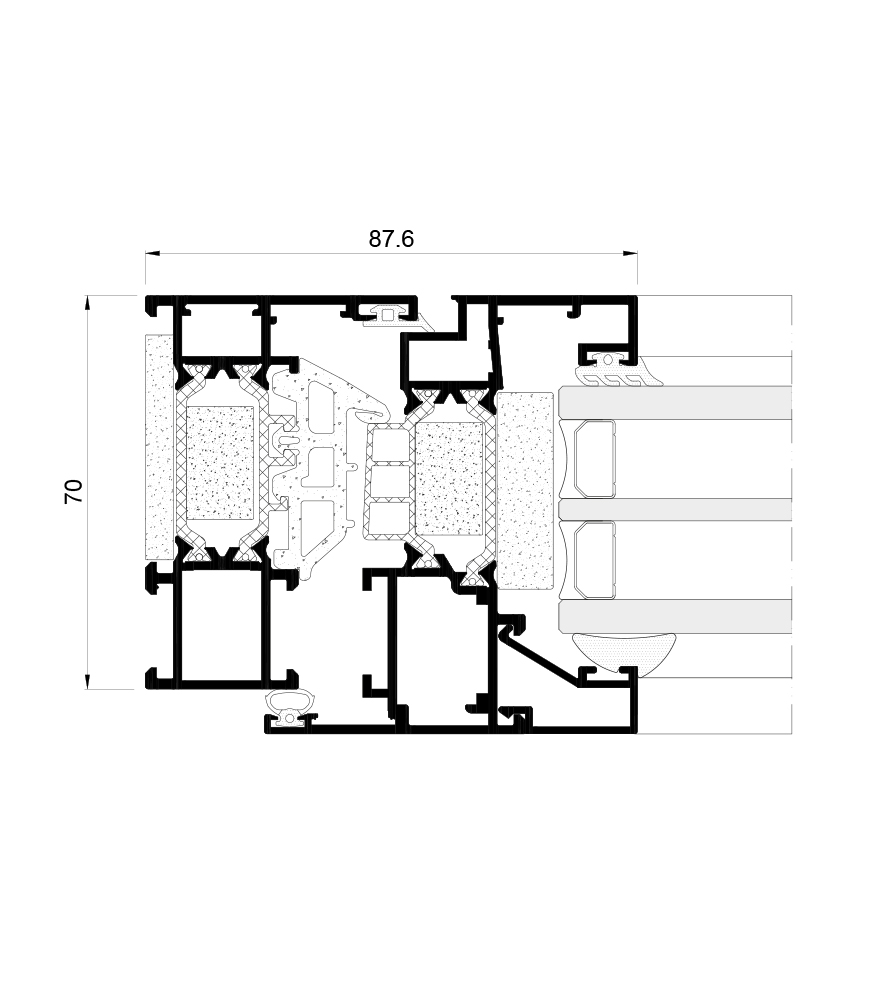

Sightlines
Frame 70 mm
Sash 78 mm
Profile thickness
Cor 70 Indsutrial:
Window 1.5 mm
Door 1.7 mm

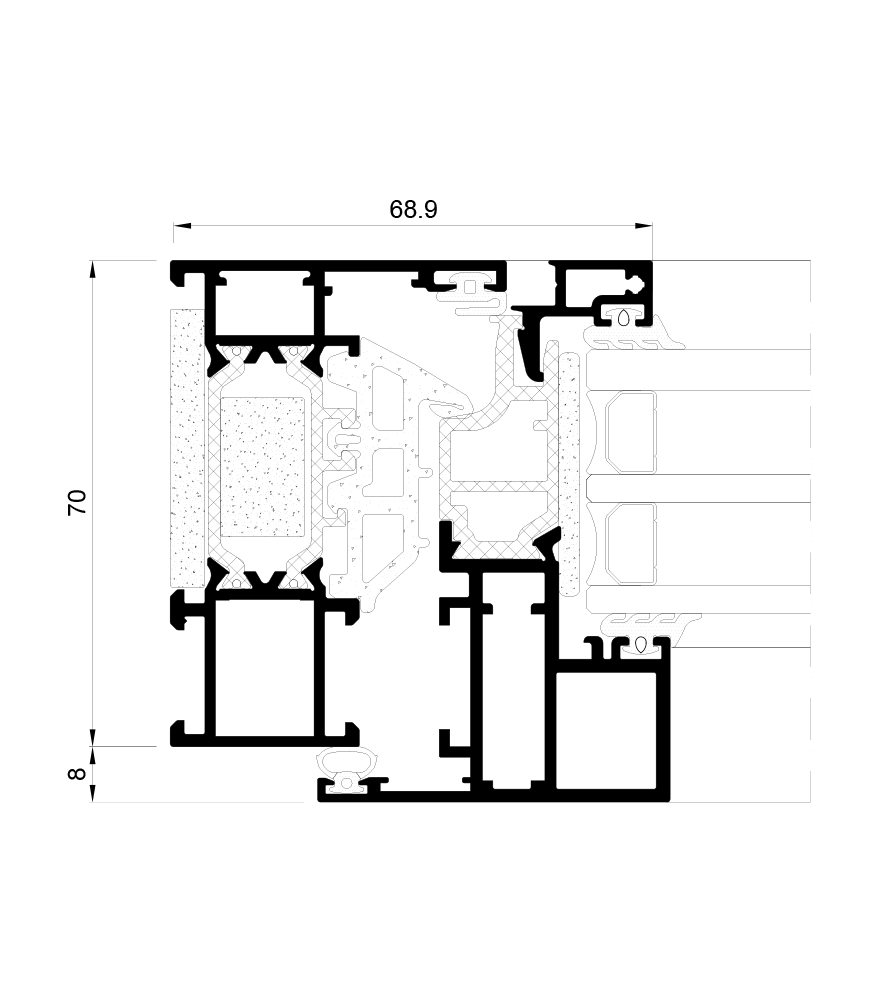

Cor 70 Industrial – Half-Hidden Sash
Window 1.9 mm
Polyamide strip length
From 32 / 35 mm
35 mm (Half-Hidden Sash)
Maximum sash dimensions
Width (L) 1500 mm, Height (H) 2600 mm
Half-Hidden Sash:
Width (L) 1300 mm, Height (H) 2400 mm
Standard solution
Width (L) 1200 mm
Maximum sash weight
160 kg
Consult maximum weight and dimensions according to typologies
Aesthetic possibilities
Sash: Straight
Bead: Straight or curved
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
