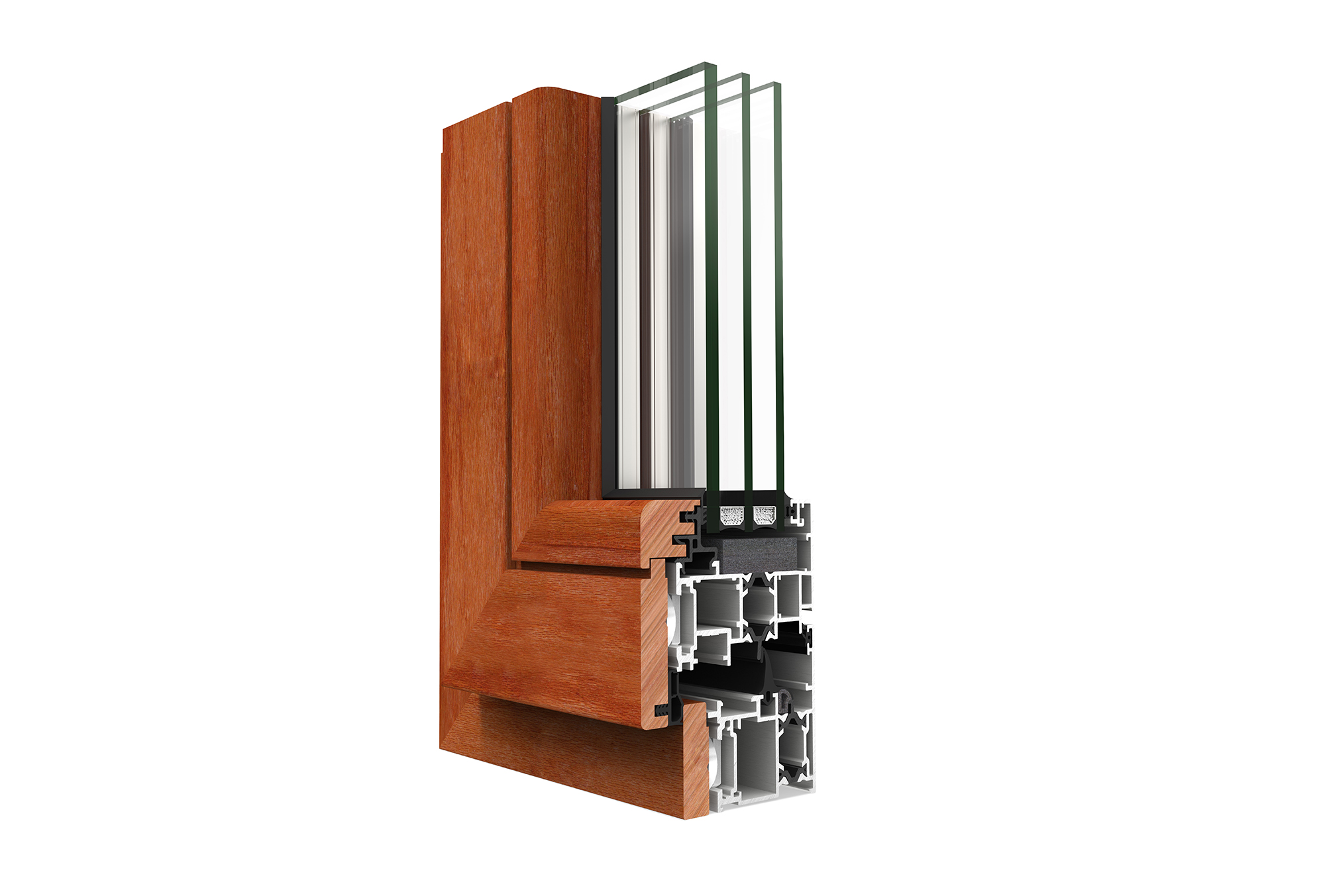

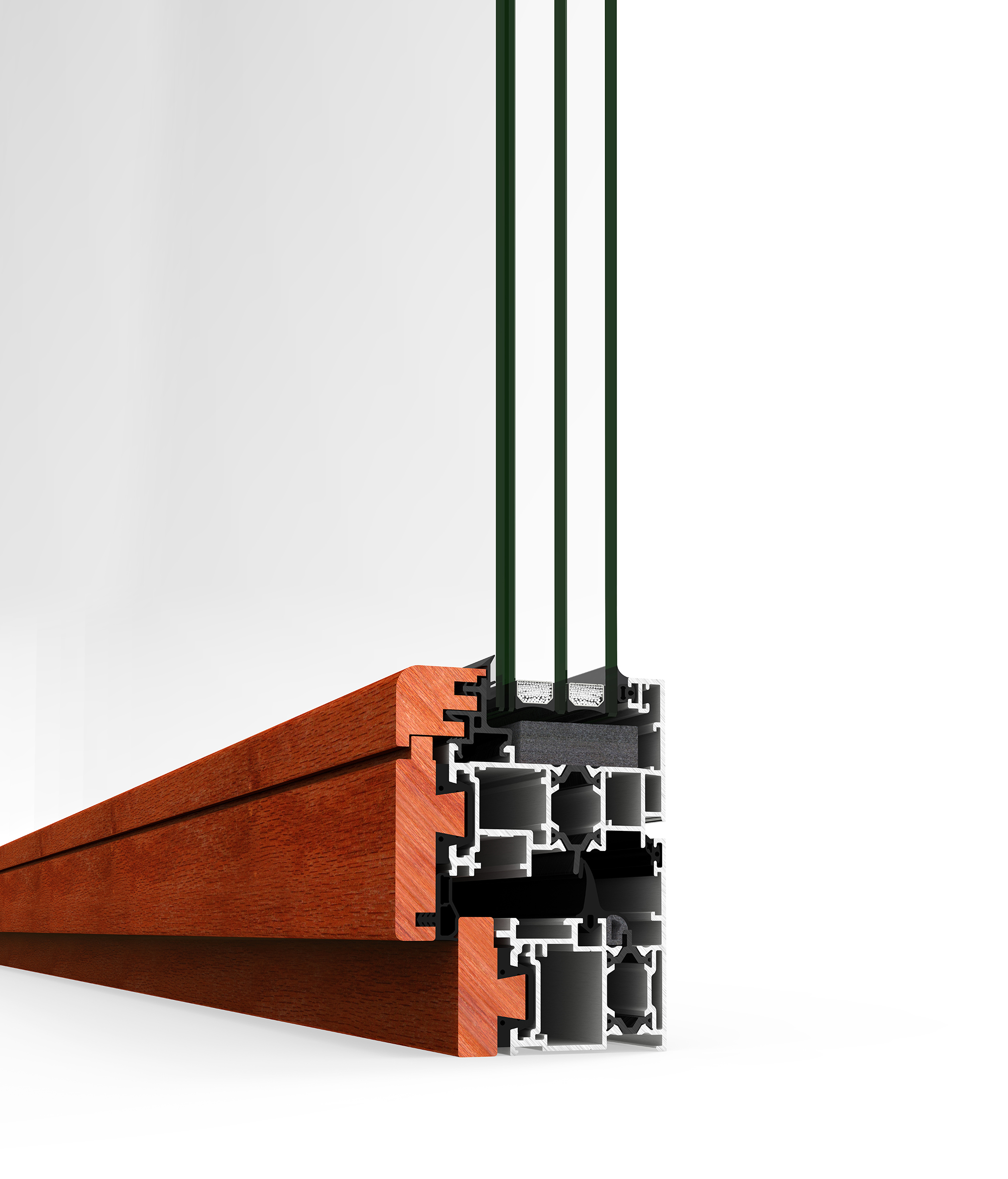

Thermally broken mixed system that combines an external aluminium profile and its excellent performance with the warmth and design that an internal timber profile provides.The extensive range of CORTIZO powder coating or anodising finishes, any of them may be selected for the surface treatment of the external face. On the other hand, the internal face is available in American oak, sapelly, mellis pine and other timber options available on request, all of them treated with a transparent, satin, dissolvent free ecological varnish.
Possibilities
» Security hardware
Glazing
Sash
Max. 40 mm
Min. 18 mm
Fixed light
Max. 30 mm
Min. 8 mm
Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt & parallel
Bottom hung

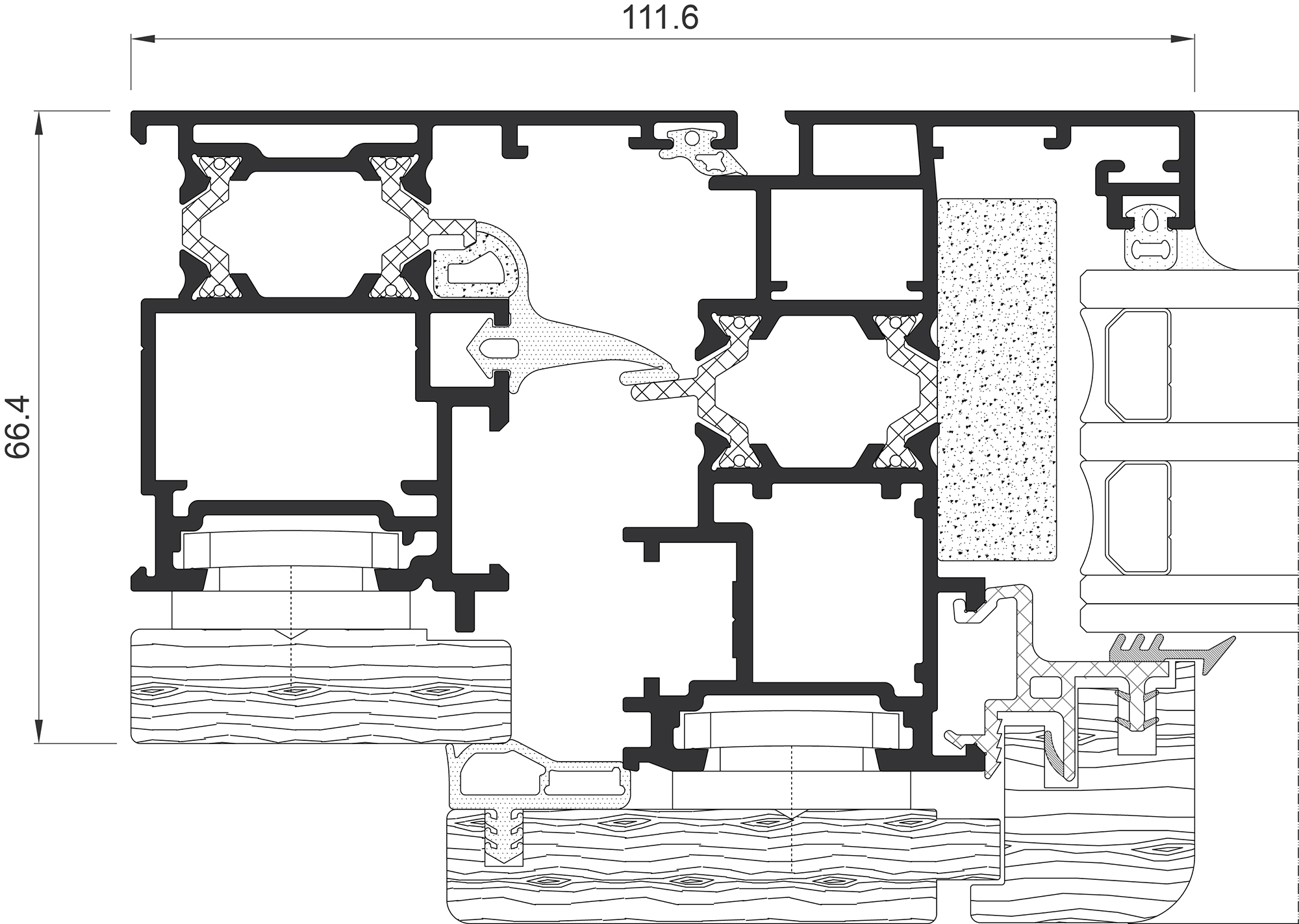

Sightlines
Frame 14.8 mm
Sash 16 mm
Profile thickness
Window 1.5 mm
Door 1.6 mm
Polyamide strip length
Frame 14.8 mm
Sash 16 mm
Maximum sash dimensions
Width (L) 1,400 mm
Height (H) 2,400 mm
Maximum sash weight
100 kg
Consult maximum weight and dimensions according to typologies.
Aesthetic possibilities
Sash: Straight
Bead: Curved
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
