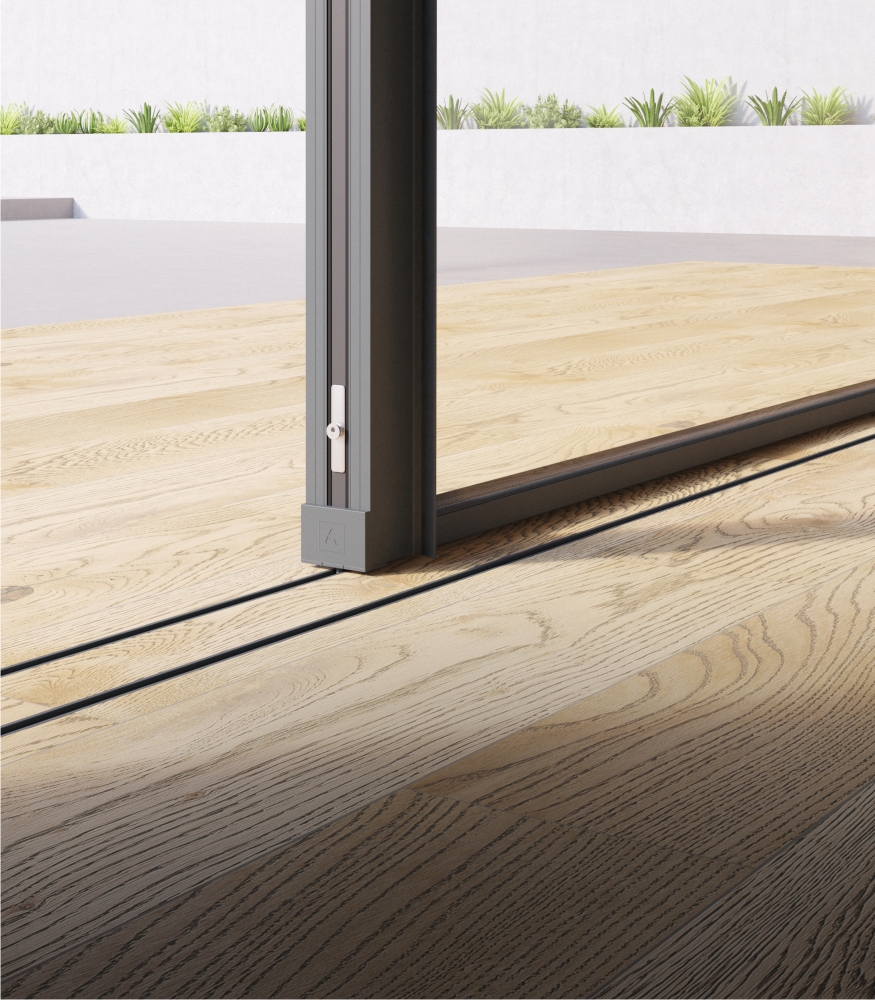

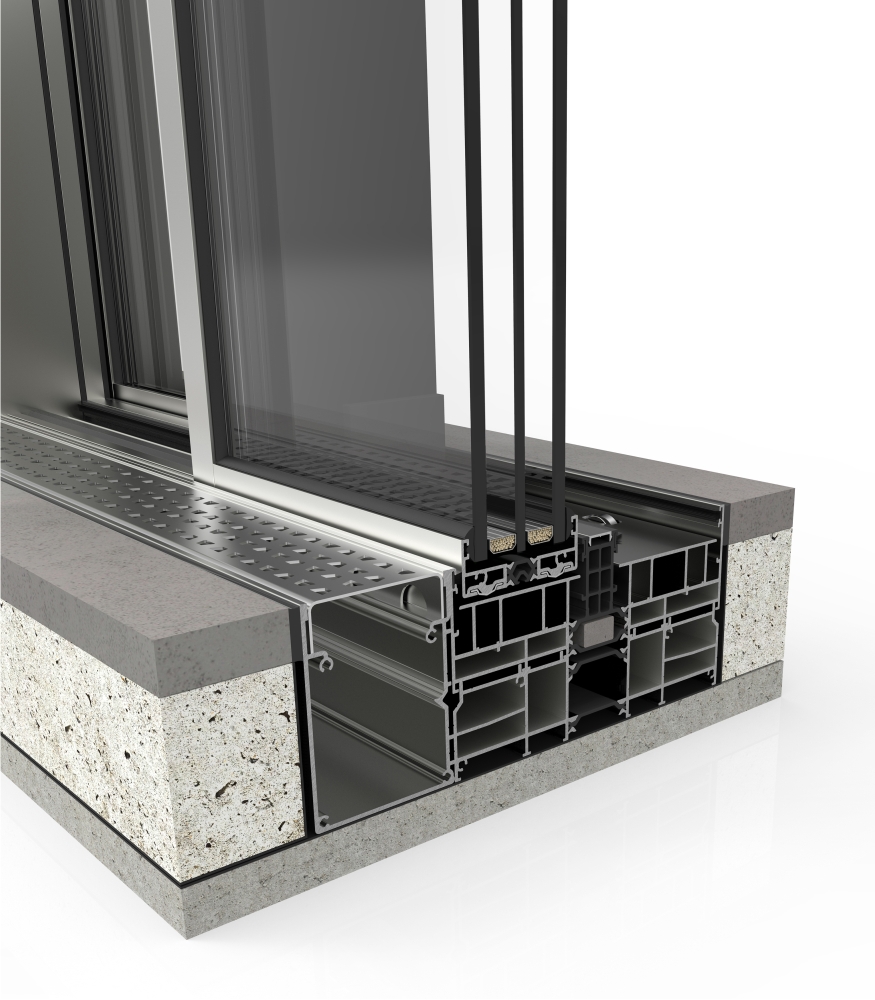

The greatness of minimalism is reflected in this sliding system of large dimensions with sashes of up to 4 meters, interlock sightline of only 25 mm and frames embedded in the perimeter, allowing for a glazed surface of up to 94%. It has a maximum glazing capacity of 56 mm, offering excellent thermal and acoustic performances. Available with manual (up to 400 kg) or motorized (up to 700 kg) opening system. Additionally, accessibility is favoured by the possibility of hiding the rail and even integrating it fully into the floor.
Possibilities
» Automation
» Accessibility
Glazing
Max. 56 mm
Min. 36 mm
Opening possibilities
Sliding of 2, 4 or 6 sashes
Up to 4 rail configurations
1 sash + 1 fixed / 2 sashes + 1 fixed
Possibility of corner sash encounters at 90º without mullions
Pocket solution possibility 1,2,3, and 4 sashes

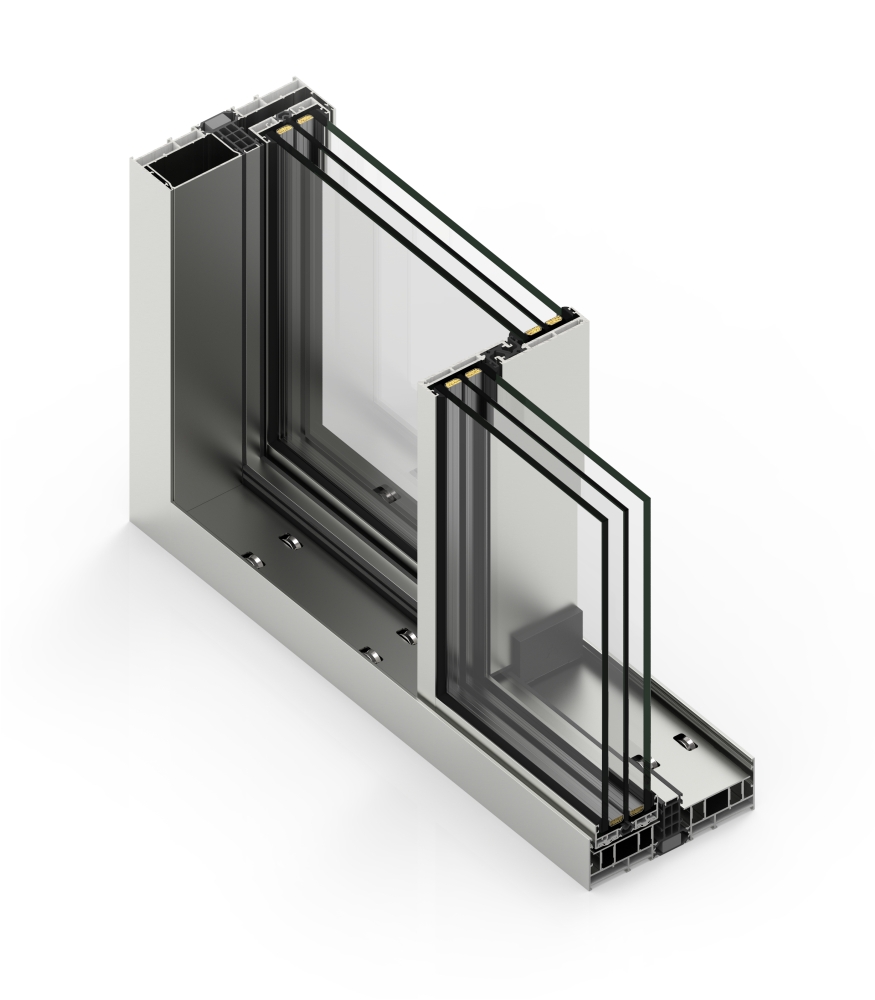

Sections
Frame
180 mm
278 mm
3 rails
Sash
6mm
Profile thickness
Door 2.0 mm
Polyamide strip length
Frame 40 mm
Sash 18 / 32 mm
Maximum dimensions/sash
Width (L) = 4000 mm
Height (H) = 4000 mm
Glass surface ≤ 14 m²
Maximum weight/sash
400 kg Manual
700 kg Motorised
Please consult regarding maximum weight and dimensions for other opening types
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
