Internal seen section of just 18 mm
Minimalist and slim look

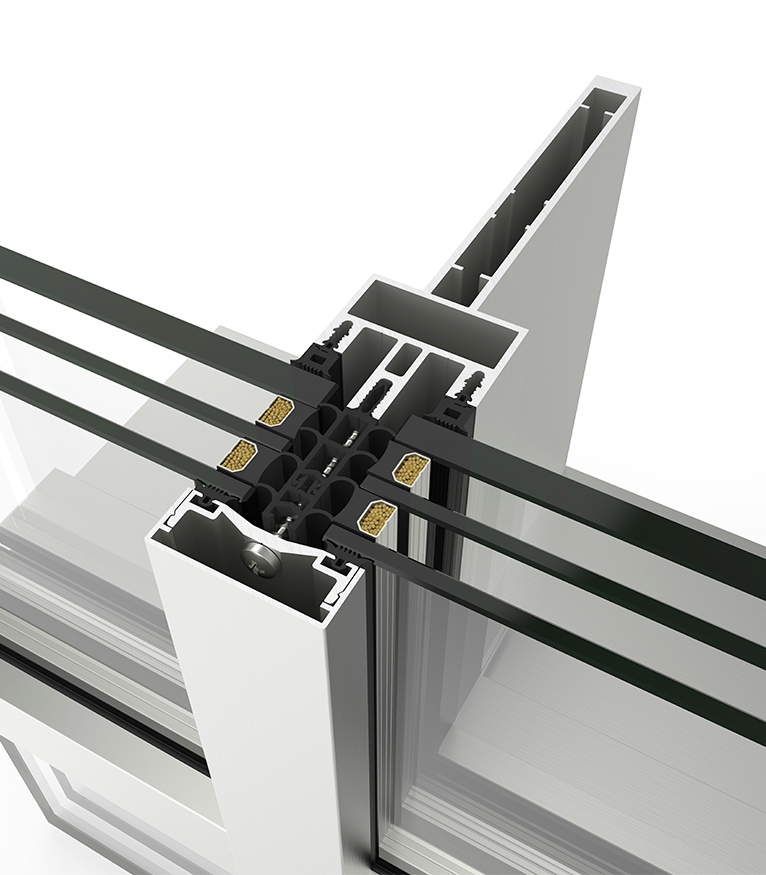

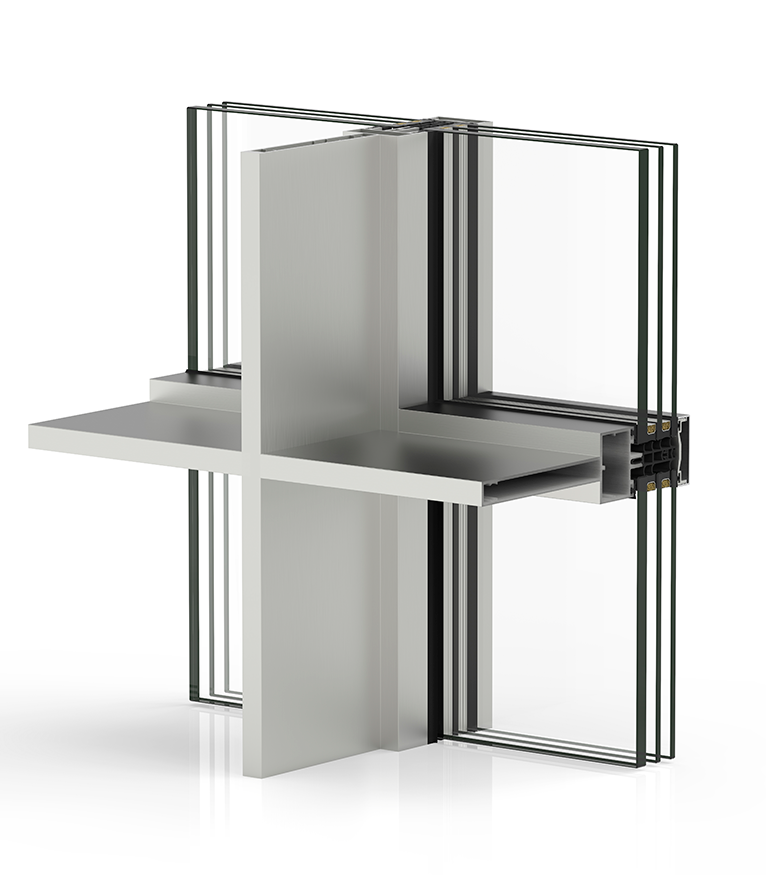

Its mullions and transoms offer, as a result of their joint, a uniform union on the outside face of the curtain wall
The combination of mullions and transoms is compatible with the following systems: TP 52, SG 52, TPH 52, TPV 52, ST 52 and SST 52
Glazing
Maximum glazing 64 mm*
Mínimum glazing 6 mm
*Consult us for greater thicknesses

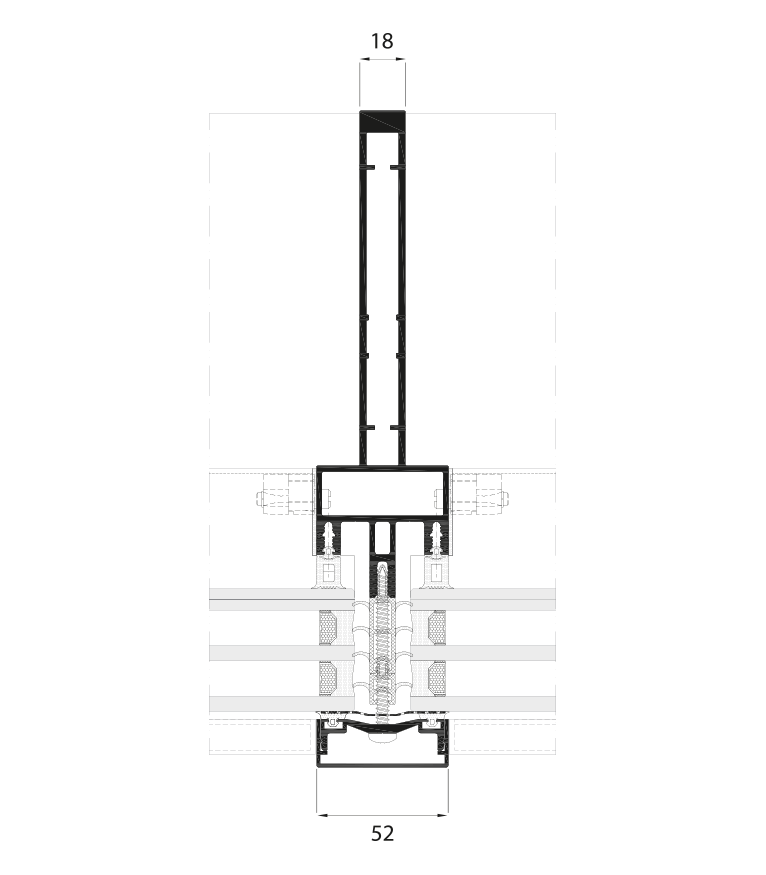

Sections
Mullion 18 mm
Transom 18 mm
Profile thickness
Mullion 2,6 mm
Transom 2,6 mm
Polyamide strip length
6, 12 & 30 mm stackable profiles
Covers
85 mm deep elliptical cover
H shape cover, 34 mm deep
Rectangular cover: 14, 19 100 & 145 mm deep
Pyramid shape cover, 155 mm deep
Finishes
Powder coating / Anodised
