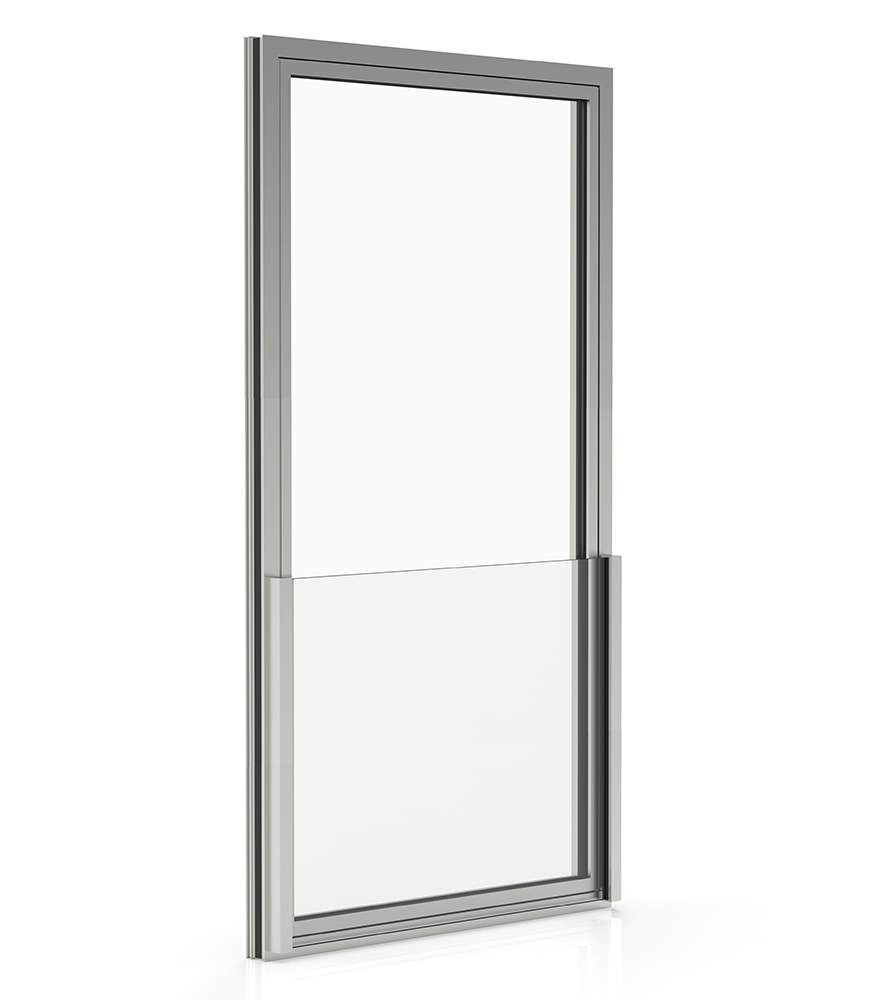

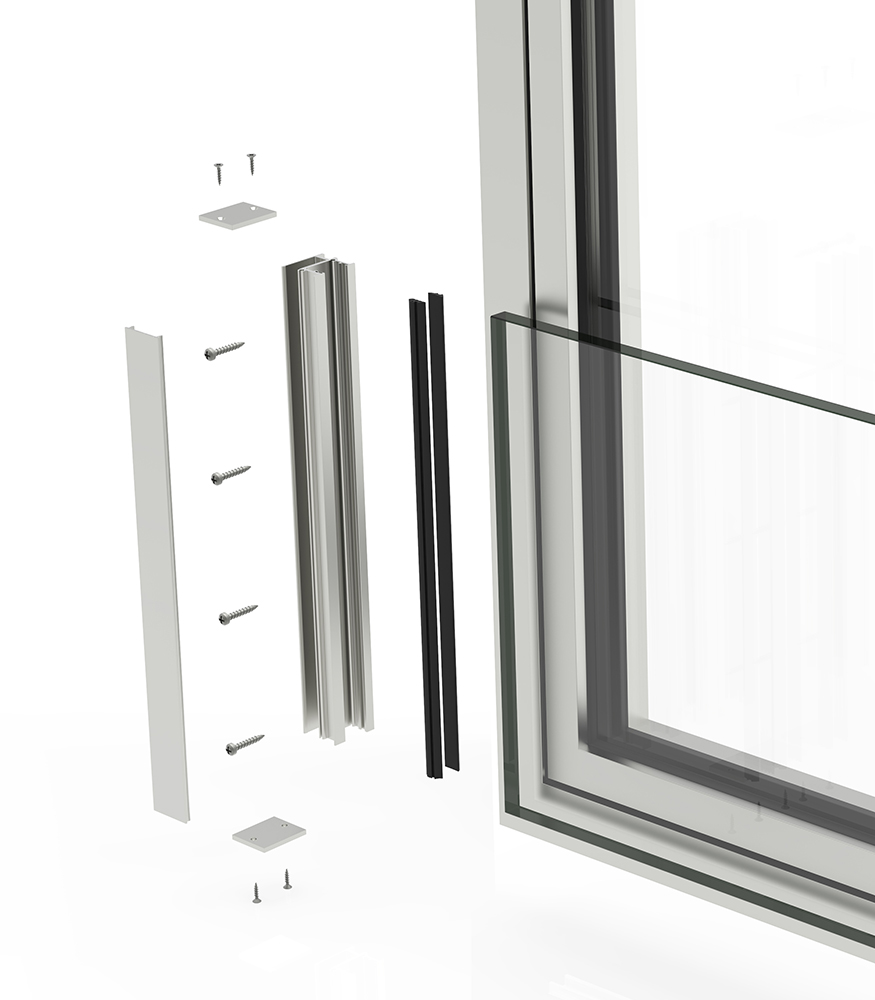

Complementary solution designed to be placed in the exterior of the windows by means of hidden fixings.
It allows the safe opening of windows and doors enjoying an unobstructed view.
Glazing
This railing system allows 8 glazing possibilities: double laminated glazing of, 8 or 6 mm joined by up to 4 polyvinyl butyrals of 0.38 mm.
The use of tempered glass is suggested.
Composition
8 – 1.52 – 8
8 – 1.14 – 8
8 – 0.76 – 8
8 – 0.38 – 8
6 – 1.52 – 6
6 – 1.14 – 6
6 – 0.76 – 6
6 – 0.38 – 6
Maximun width
1,800 mm
Finishes
Colour powder coating / Anodised
