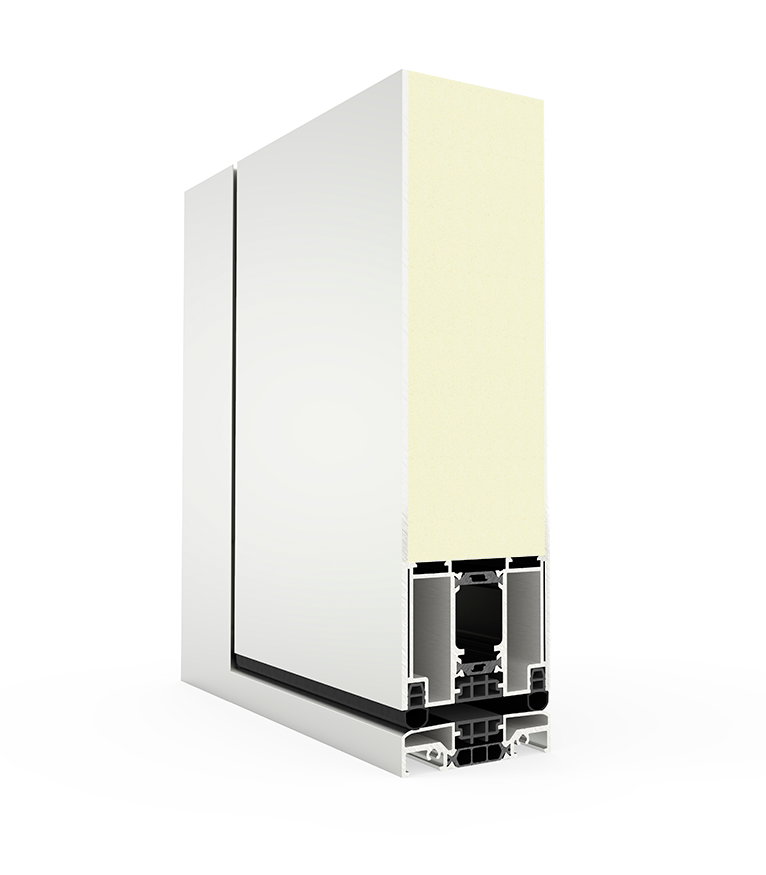

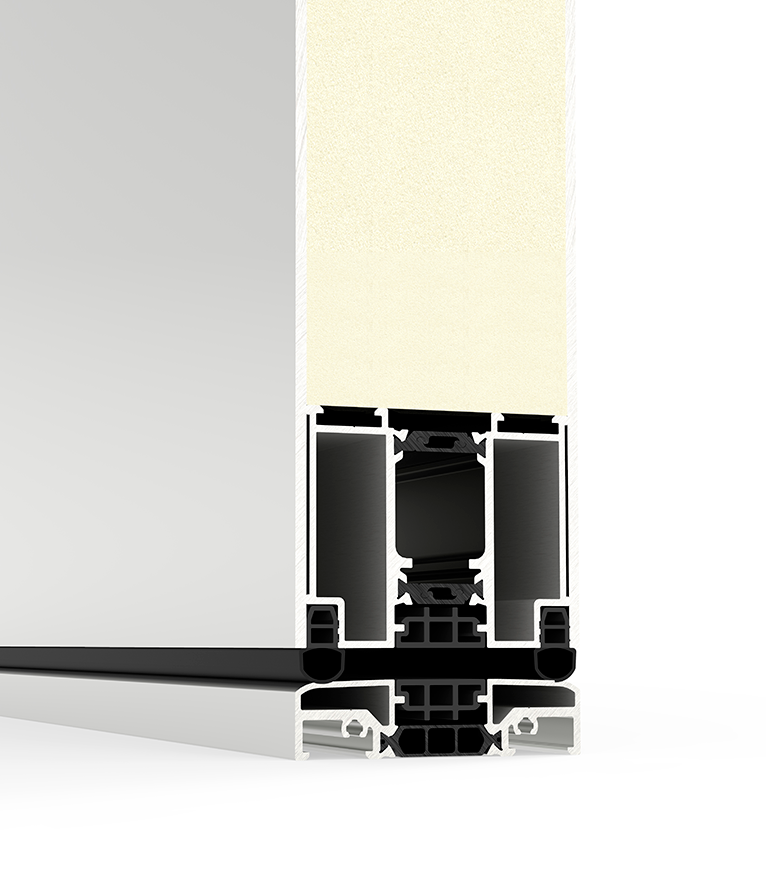

This new entrance door from CORTIZO answers the latest design trends. The system is designed to allow large pivot openings suitable for contemporary architectural projects, and it offers excellent thermal and acoustic performance along with minimalistic sightlines.

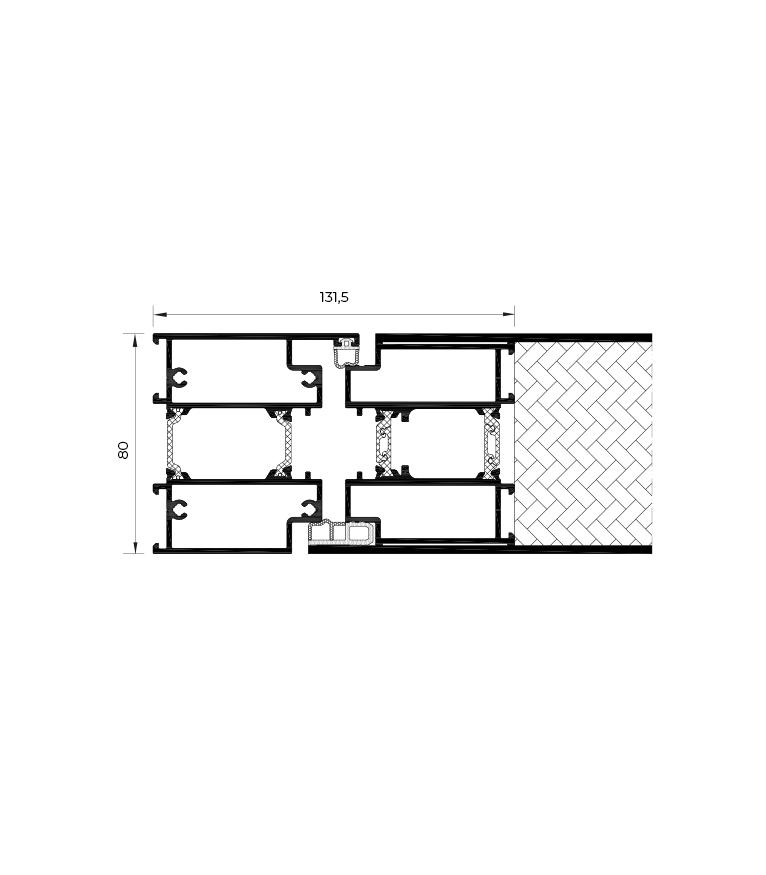

Sightlines
Frame 80 mm
Sahs 80 mm
Opening possibilities
Pivoting
Panel
80 mm
Profile Thickness
Door 2.0 mm
Polyamide Strip Length
24 / 26 mm
Maximum Sash Dimensions
Width (L) 2100 mm (1700* + 400 mm)
Height (H) 3000 mm
Maximum Sash Weight
250 kg
Consult maximum weight and dimensions according to typologies
*Measure from the pivot axis
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial
