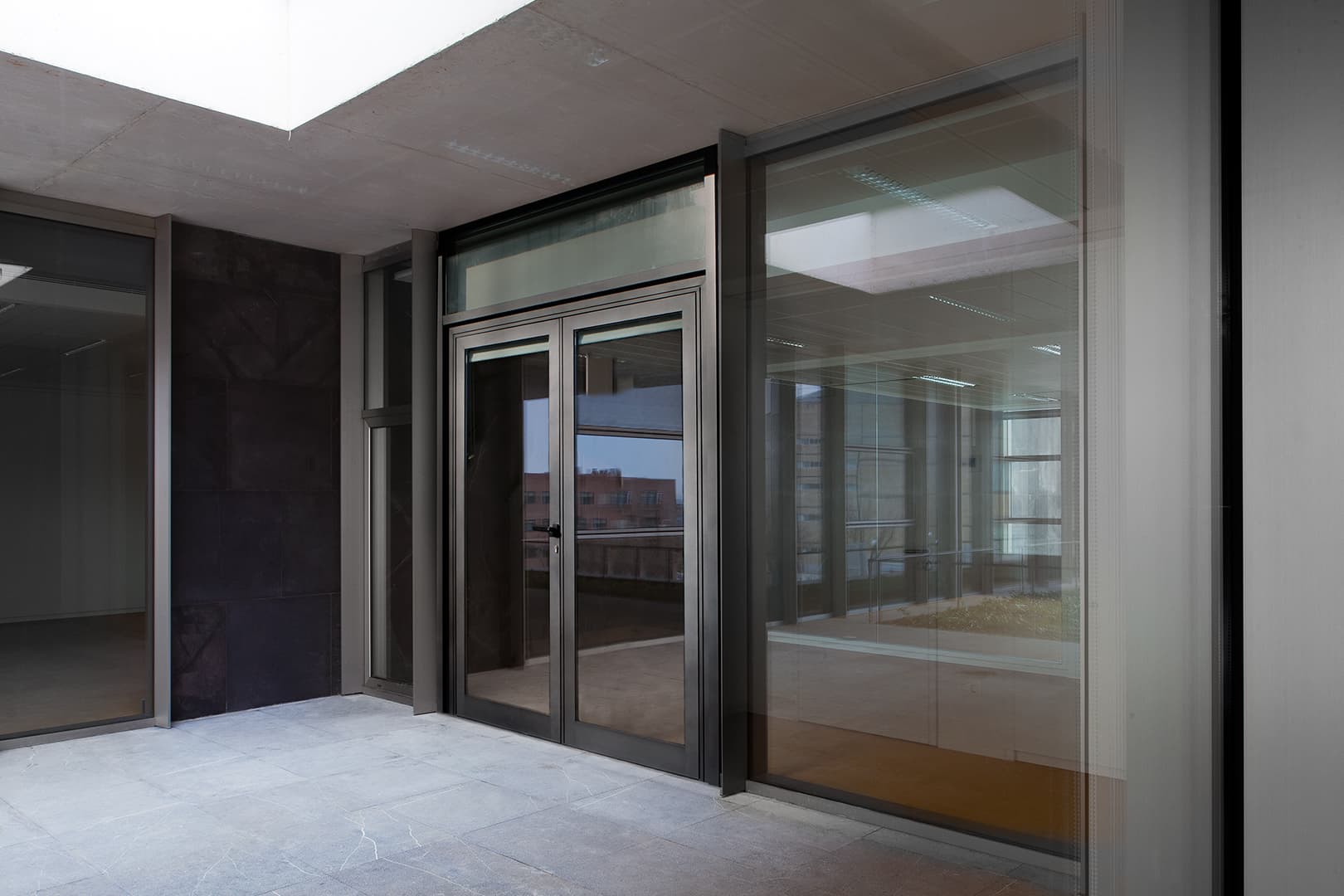

Pedestrian door system for commercial and residential buildings that allows the incorporation of double or triple flag hinges of high strength, capable of supporting up to 180 kg. per sash.
Possibilities
Accessibility
Glazing
Max. 30 mm
Min. 3 mm
Opening possibilities
Inward opening
Side hung
Automatic side hung
Outward Opening
Side hung
Automatic side hung
Swing Opening
Side hung 1 and 2 sashes
Profile thickness
Door 2.0 mm
Maximum dimensions/sash
Side hung door
Width (L) = 1,450 mm
Height (H) = 3,000 mm
Automatic sliding door
Width (L) = 2,000 mm
Height (H)= 3,000 mm
Swing door
Width (L) = 1,100 mm
Height (H) = 3,000 mm
Maximum weight/sash
190 kg
120 kg automatic version
Please consult regarding maximum weight and dimensions according to types
Finishes
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
