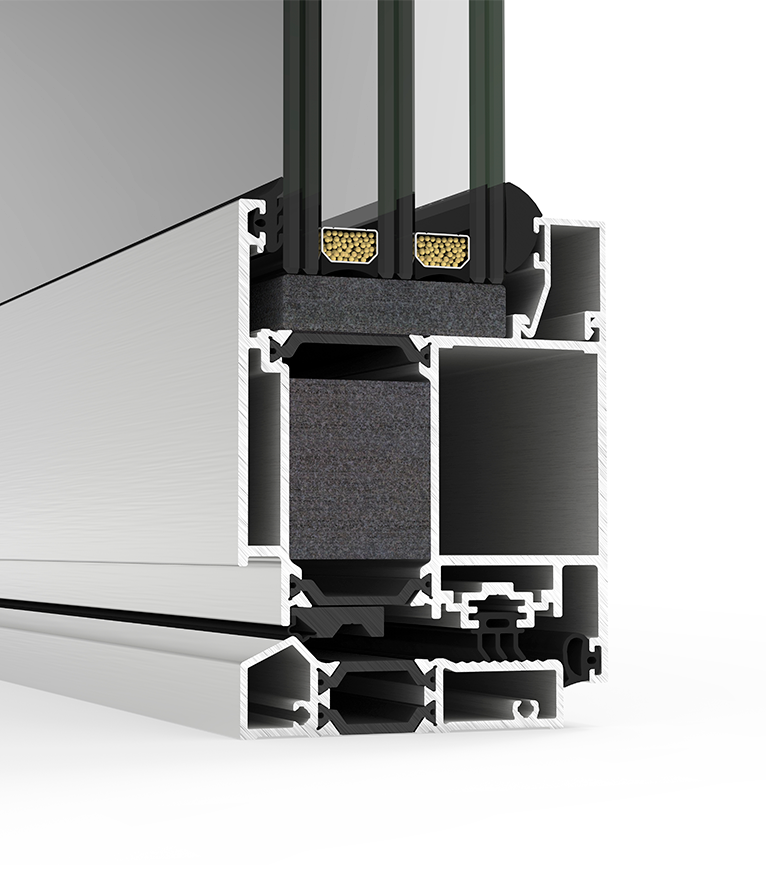

Flush entrance door system with straight lines, 80 mm of frame depth, and a thermal break zone of 34 mm, particularly suitable for commercial and residential buildings.
Possibilities
Concealed hinges
Accessibility
Automation
Glazing
Max. 64 mm
Min. 15 mm
Opening possibilities
Inward Opening
Side hung
Outward opening
Side hung
Automatic Opening
Inward and outward side hung

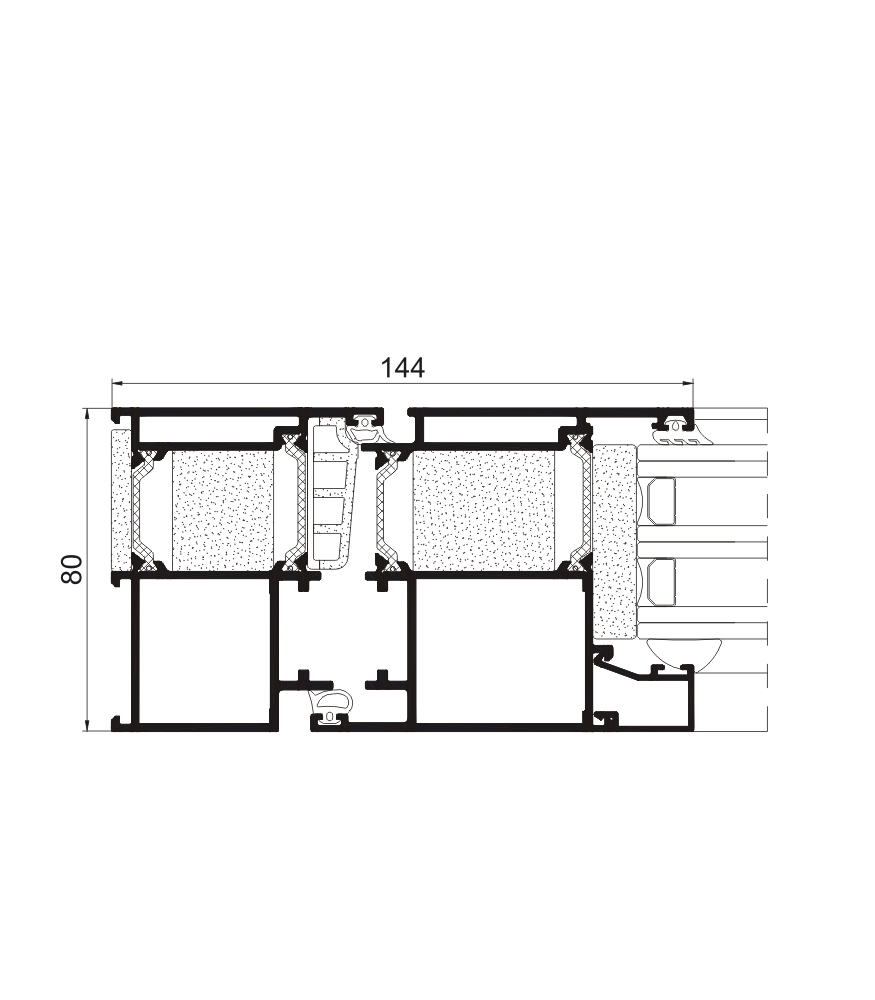

Sections
Frame – 80 mm
Sash – 80 mm
Profile thickness
Door 2.0 mm
Polyamide strip length
34 mm
Maximum dimensions/sash
Door
Width (L) = 1,800 mm
Height (H) = 3,000 mm
Hidden hinges door
Width (L) = 1,500 mm
Height (H) = 3,000 mm
Maximum weight/sash
220 kg
Please consult regarding maximum weight and dimensions according to types
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
