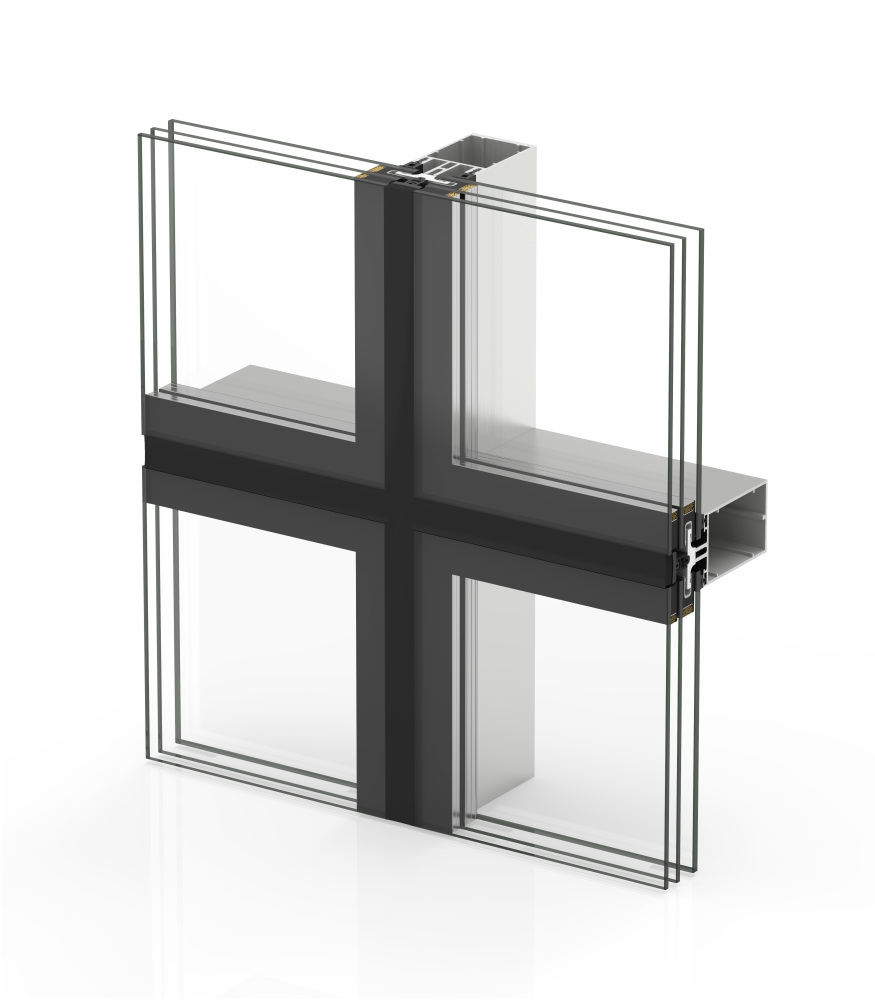

Wide variety of mullions (from 16 to 230 mm) and transoms (from 22.5 to 205.5 mm) that solve the different aesthetic and constructive needs of the architectonic sector
Internal seen section: 52 mm
Extensive profile range, their mechanical unions allows for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations
Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles

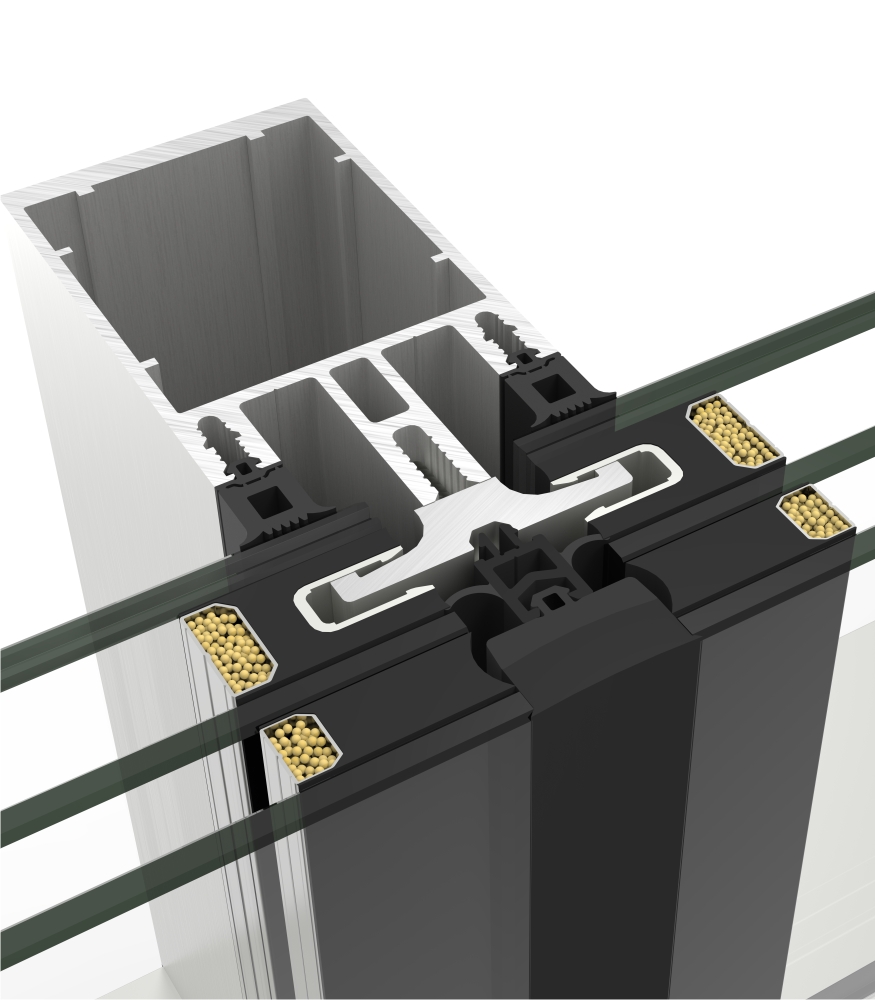

The fixing of the glazing to the supporting profiles is carried out by using clips. This system requires an additional profile that is fitted into the glazing chamber (U profile)
It has a “glass only” style on the exterior
Glazing
Maximum glazing 64 mm*
Mínimum glazing 6 mm
*Consult us for greater thicknesses
Opening possibilities
Hidden Top Hung

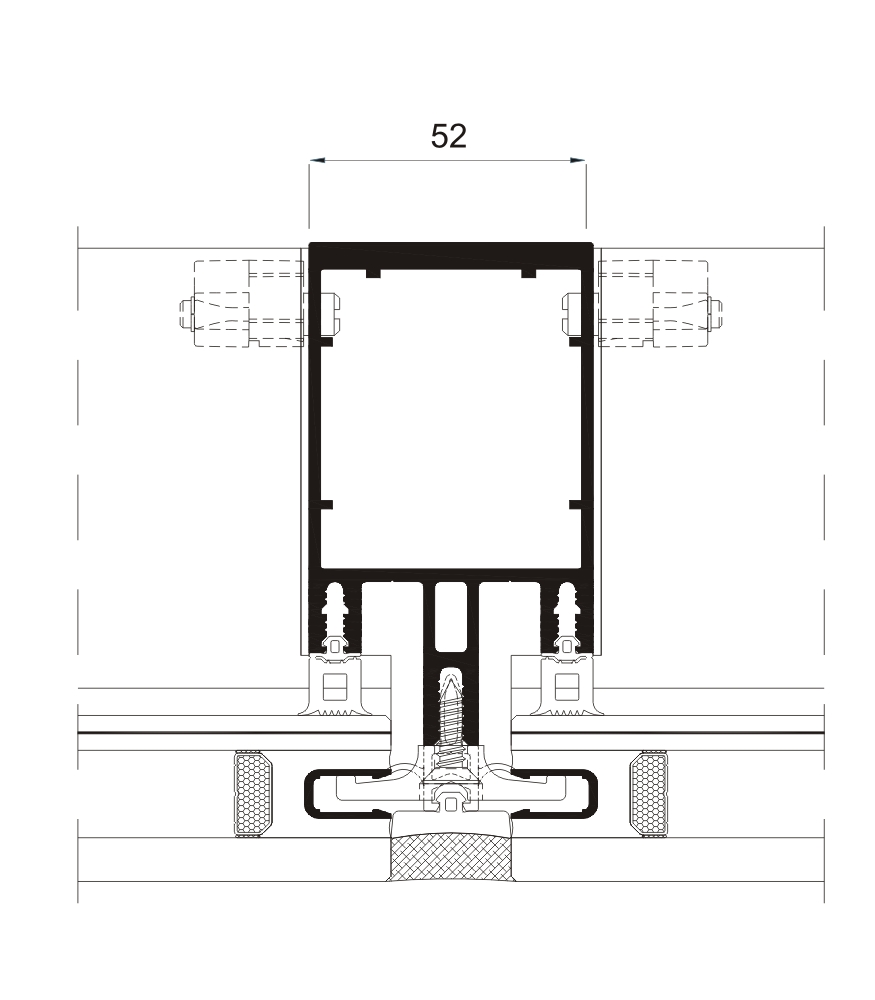

Sections
Mullion 52 mm
Transom 52 mm
Profile thickness
Mullion 2.1 and 3 mm
Transom 2.1 mm
Polyamide strip length
6, 12 & 30 mm stackable profiles
Minimum / Maximum opening dimensions
Min. Width (L) = 500 mm
Min. Height (L) = 650 mm
Max. Width (L) = 2500 mm
Max. Height (H) = 2500 mm
Maximum weight / sash
180 kg
Maximum weight of fixed lights
750 kg
Consult maximum weight and dimensions according to typologies
Finishes
Powder coating / Anodised
