Wide range of mullions (from 130 mm to 250 mm) and transoms (from 40.5 mm to 255.5 mm)
Internal section of 52 mm
This skylight system allows for an easy integration of our veranda systems, our hinged windows or our sliding window/door systems.
It allows the possibility of adding a motorised top hung projecting opening in roof areas
Glazing
Fixed
Maximum 50 mm
Minimum 24 mm
Window roof
Maximum 38 mm
Minimum 24 mm
Opening possibilities
Motorized top hung projecting

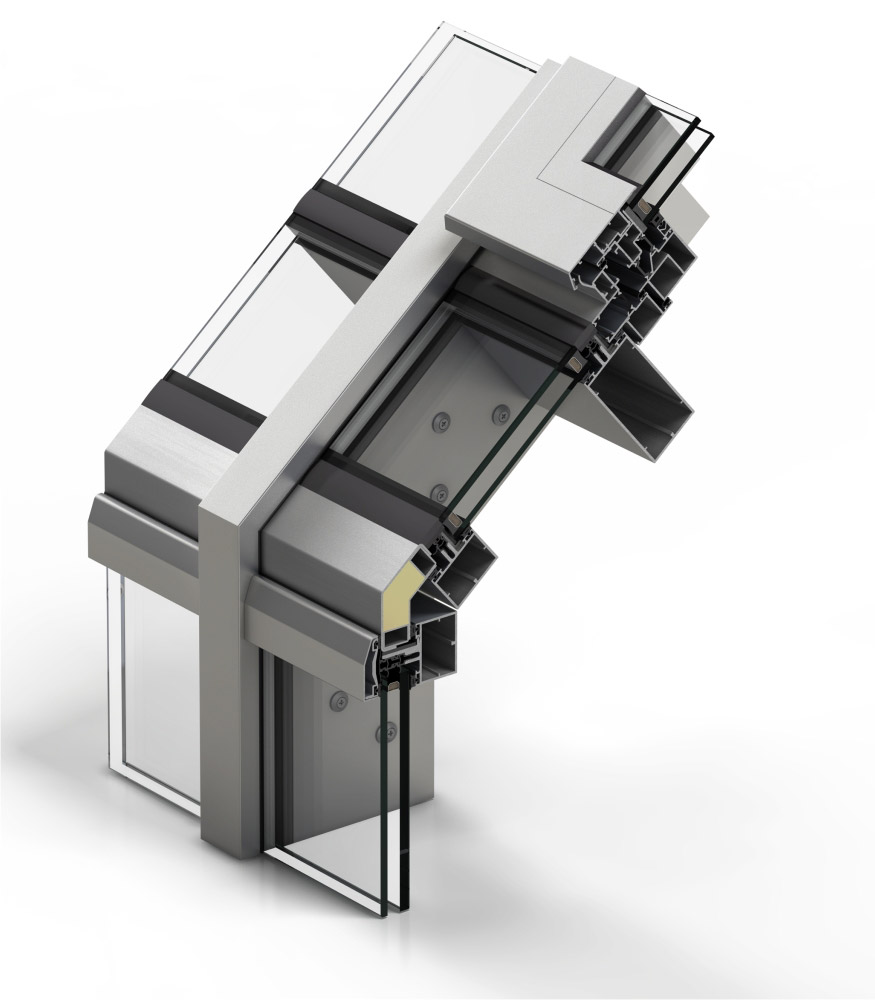

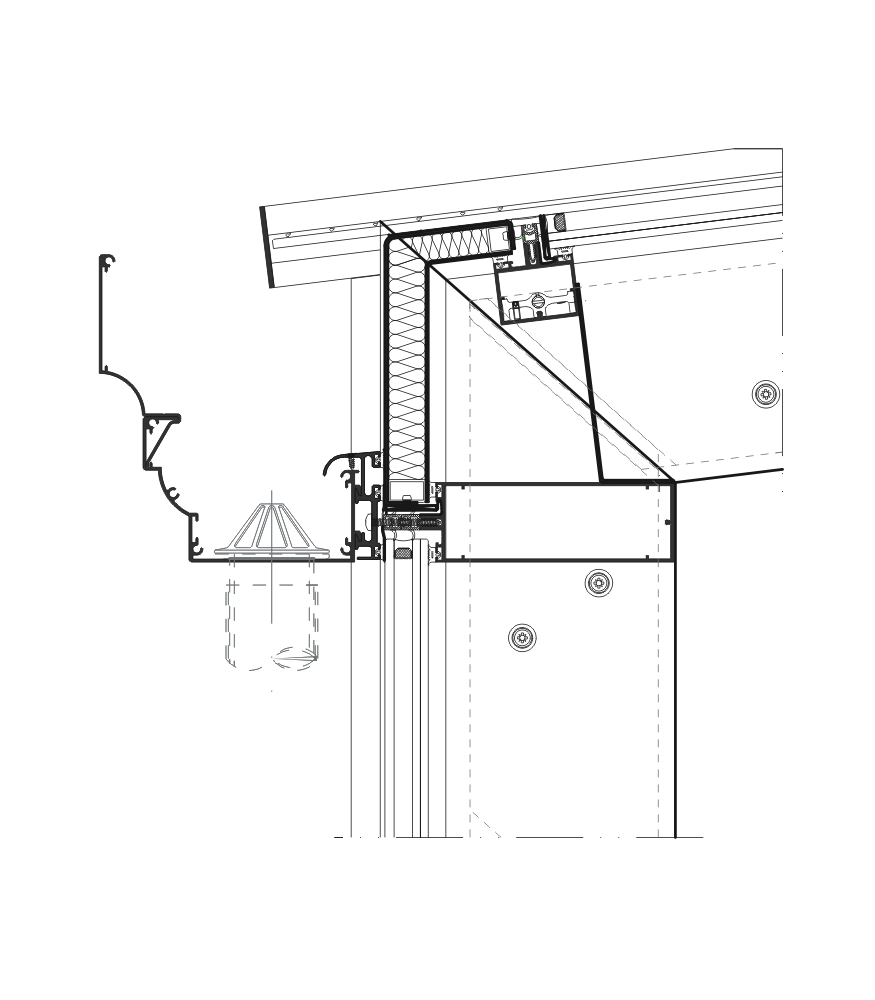

Sections
Mullion 52 mm
Transom 52 mm
Profile thickness
Mullion 2,1 and 3 mm
Transom 2,1 mm
Minimum incline / slope
Pt = 12% (7º)
Maximum incline / slope
Pt = 85% (40º)
Finishes
Powder coating / Anodised
