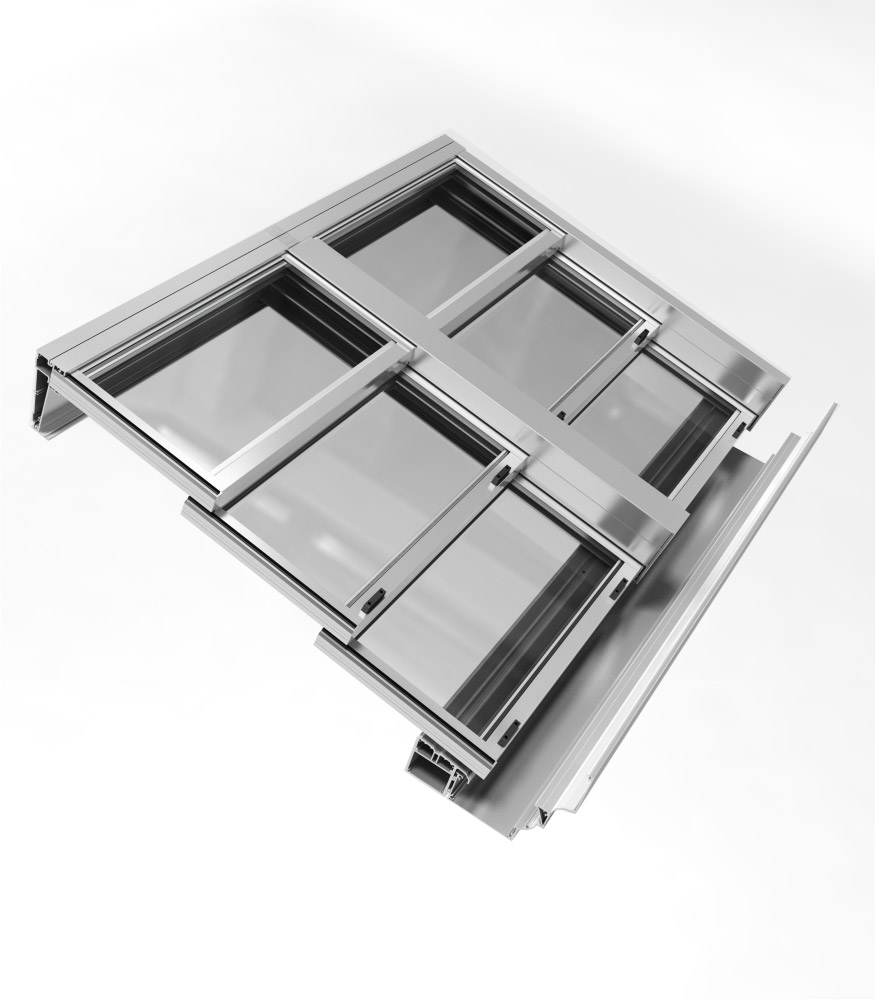

Sliding and automatic adjustable roof system
Combination of styles, robustness, convenience and great performance

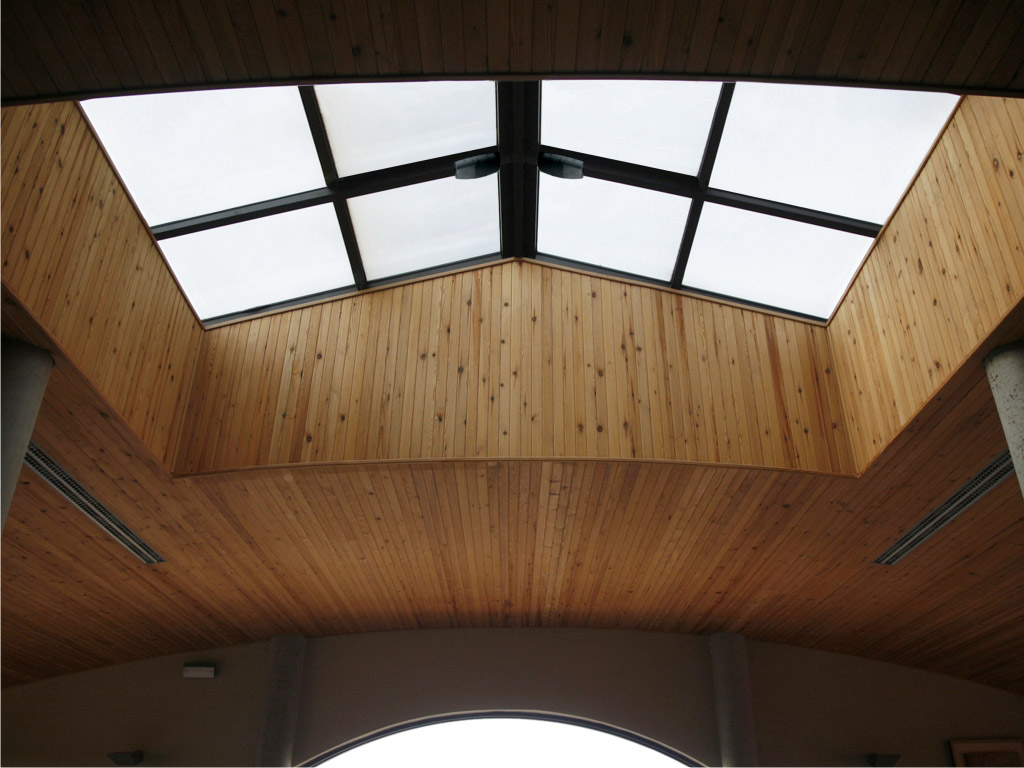

Maximum opening possibility of 66% of the surface area. This system provides good ventilation and allows for a total entry of light from above
It has all types of complementary profiles to facilitate water collection and drainage that guarantee total water tightness
Incline / Slope
Profiles prepared for an inclination of 8,5° (15%)
Maximum roof distance
4,800 mm
Minimum roof distance
3,100 mm
Roof’s width
Unlimited when joining modules
Glazing possibilities
25 mm cellular polycarbonate
24 mm sandwich panel
24 mm glass. (4 tempered/ 12 /4+4)
Opening possibilities
Sliding: 2 sashes and 1 fixed module and multiple falls

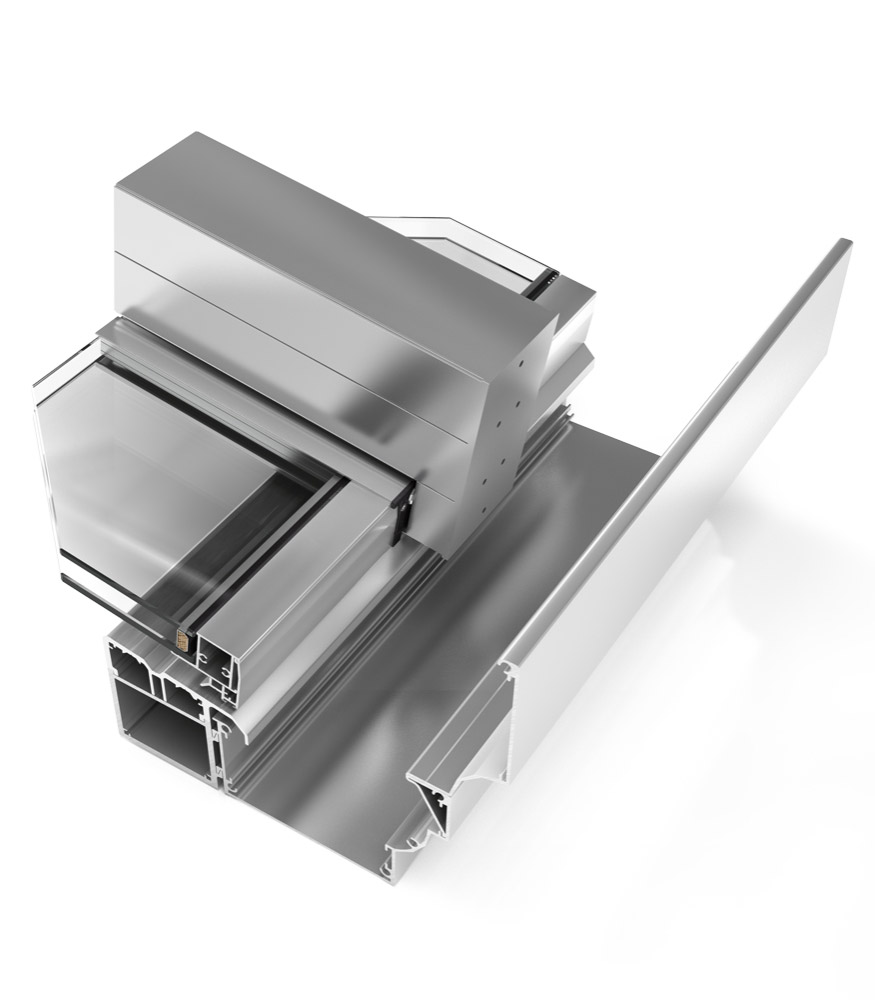

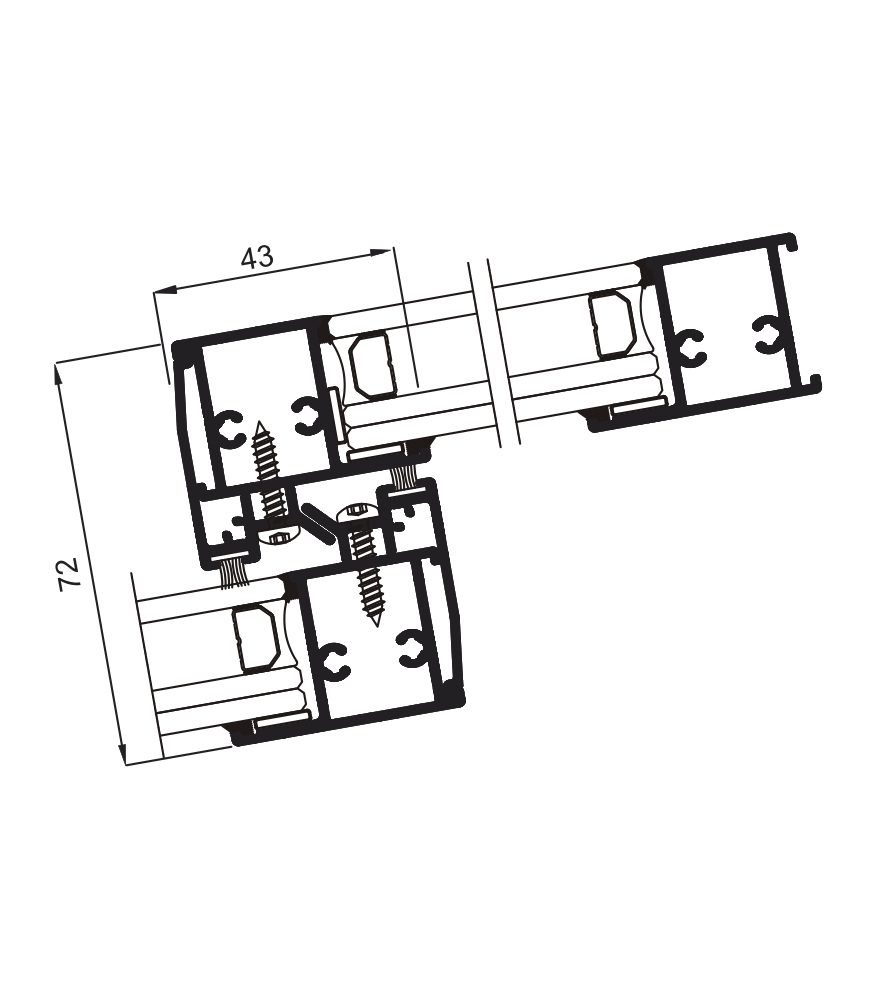

Sections
Frame – 133 mm / Sash – 28 mm
Profile thickness
Sashes 1.5 mm
Maximum dimensions
Polycarbonate and sandwich panel:
Width (L) = 2,300 mm
Glazing:
Width (L)= 1,200 mm
Height (H) = 1,600 mm
Maximum weight
75 kg
Finishes
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti bacterial paint
Anodising
