Counter-window system
Fixed or adjustable louvres
Opaque closing system (sandwich panel)
Allows for glazed closing
Opening possibilities
Side hung of 1, 2, 3 & 4 sashes
Bi-fold
Slider
Closing Possibilities
Fixed or adjustable louvres
Opaque closing (panel sandwich)
Glazed closing

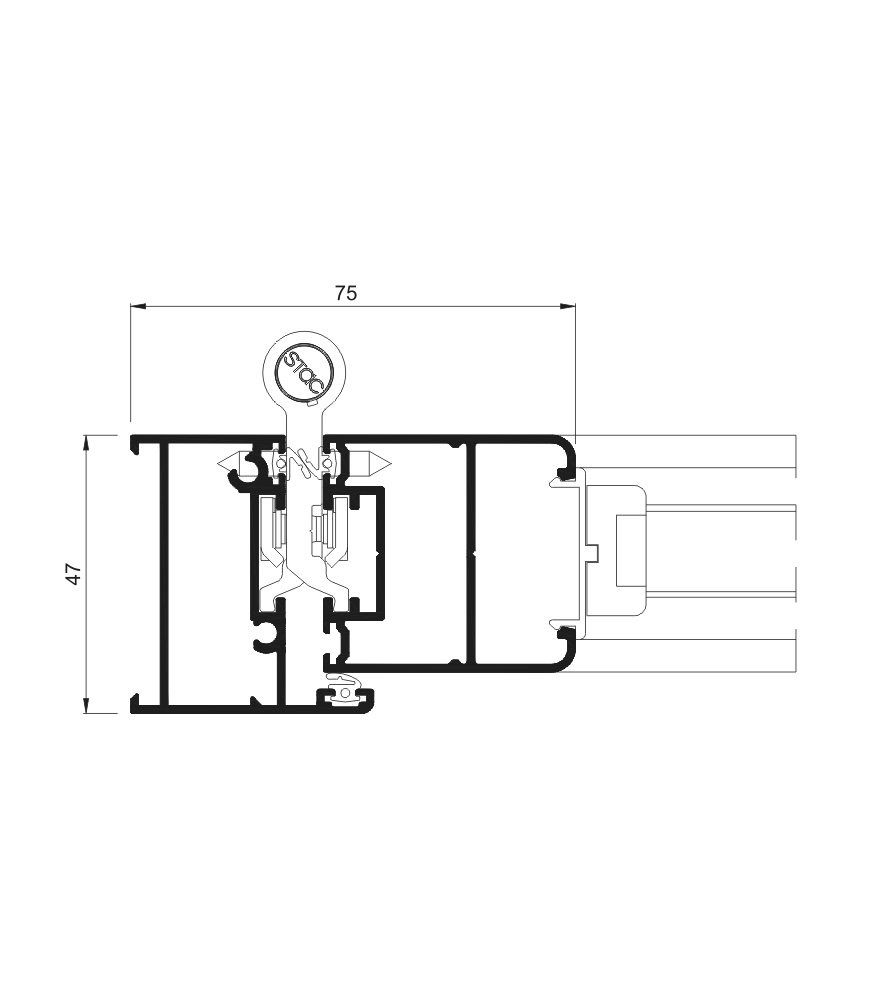

Sections
Frame 47 mm
Sash 40 mm
Profile thickness
Window 1.3 mm
Door 1.5 mm
Maximum dimensions/sash
Side hung
Width (L) = 1200 mm
Height (H) = 2500 mm
Bi-fold
Width (L) = 700 mm
Height (H) = 2500 mm
Slider
Width (L) = 2000 mm
Height (H) = 3500 mm
Please consult regarding maximum weight
and dimensions for other opening types
Maximum weight/sash
Bifold 50 kg
Side hung 65 kg
Slider 120 kg
Finishes
Powder coating / Anodised
