Wide variety of mullions (from 16 to 230 mm) and transoms (from 22.5 to 205.5 mm) that solve the different aesthetic and constructive needs of the architectonic sector
Internal seen section 52 mm
Extensive profile range, their mechanical unions allow for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations
Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles

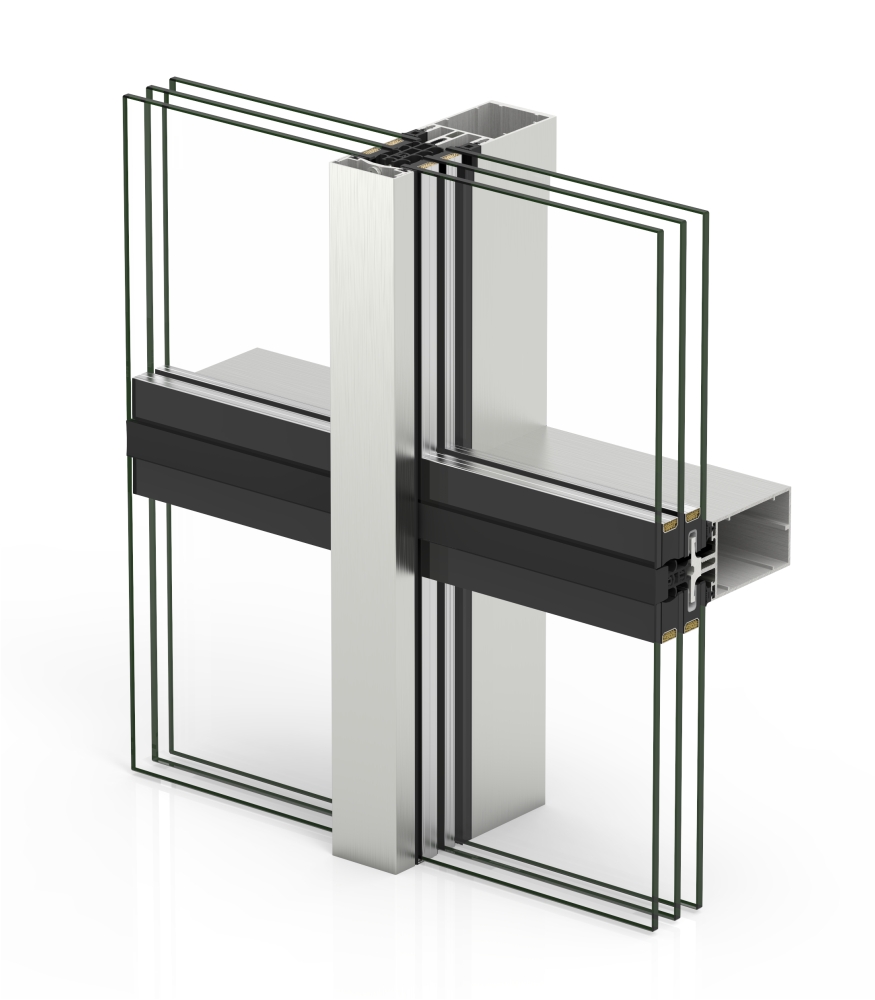

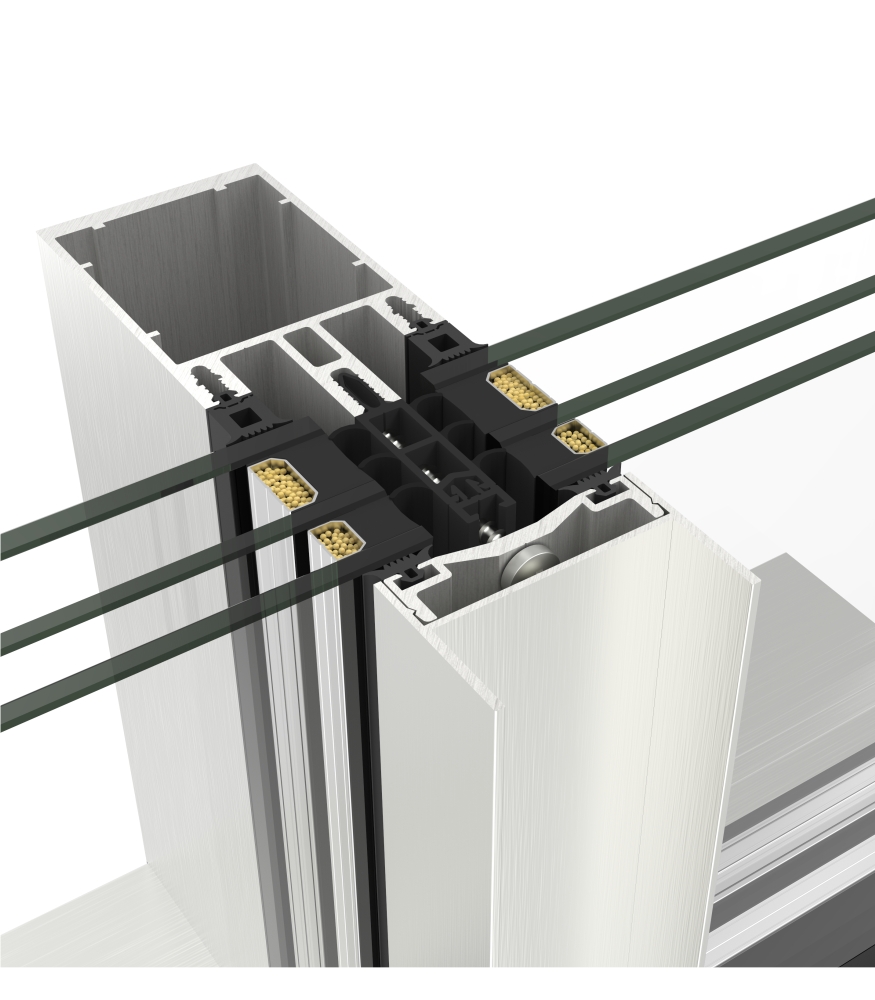

Mixed system that evolved from the combination of the TP 52 and the SG 52 systems. It maintains the pairing of the pressed profile and the cover profile on the horizontal gaskets, and it uses clips and the U-profile for its vertical edge

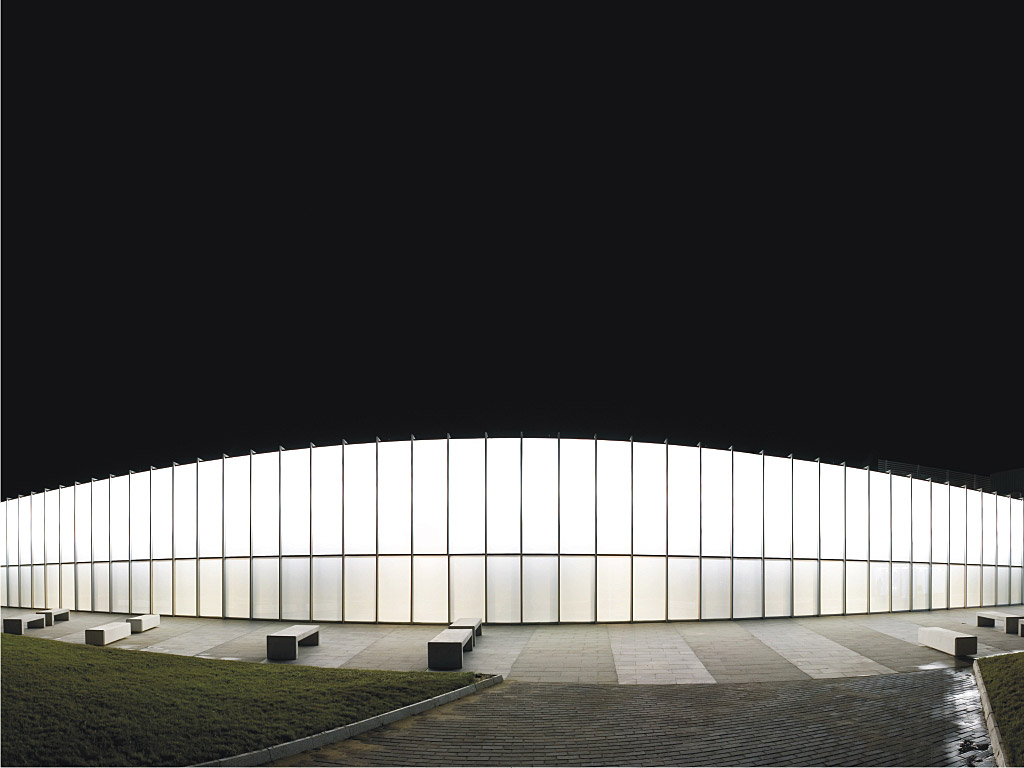

This system highlights for its vertical lines
Glazing
Maximum glazing 64 mm*
Mínimum glazing 6 mm
*Consult us for greater thicknesses
Opening possibilities
Hidden Top Hung
Sections

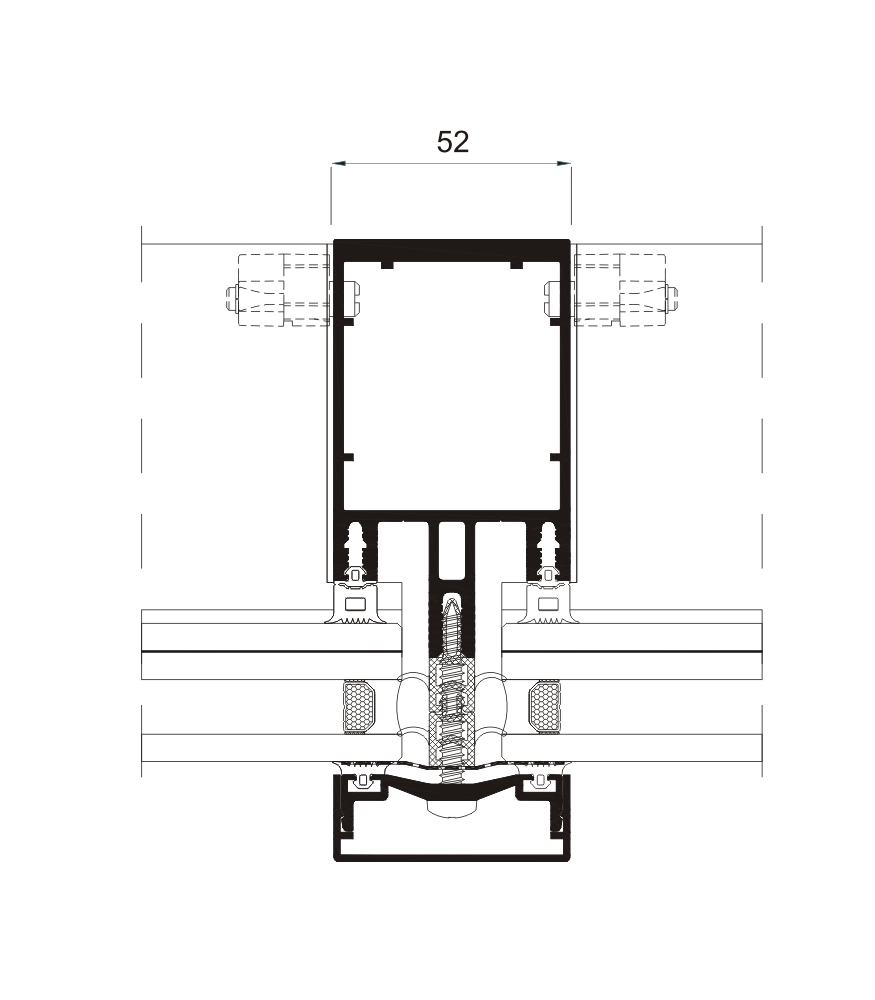

Mullion 52 mm
Transom 52 mm
Profile thickness
Mullion 2.1 and 3 mm
Transom 2.1 mm
Polyamide strip length
6, 12 & 30 mm stackable profiles
Minimum / Maximum opening dimensions
Min. Width (L) = 500 mm
Min. Height (L) = 650 mm
Max. Width (L) = 2500 mm
Max. Height (H) = 2500 mm
Maximum weight / sash
180 kg
Maximum weight of fixed lights
400 kg
Consult maximum weight and dimensions according to typologies
Covers
85 mm deep elliptical cover
H shape cover, 34 mm deep
Rectangular cover: 14, 19 100 & 145 mm deep
Finishes
Powder coating / Anodised
