Separate environments and unify spaces with this bi-fold door system with an 80 mm deep frame. This evolution of the Bi-fold series offers an excellent thermal and acoustic performance, thanks to its 45 mm thermal bridge breakage and a glazing capacity up to 48 mm. Besides, it presents a slim central section of 110 mm which allows the maximisation of the glazed surface, filling the interior spaces with natural light.
Possibilities
Accessibility
Security hardware
Glazing
Max. 48 mm
Min. 25 mm
Opening possibilities
Inward opening
Up to 14 sashes
Outward opening
Up to 14 sashes
90º corner sash without mullion

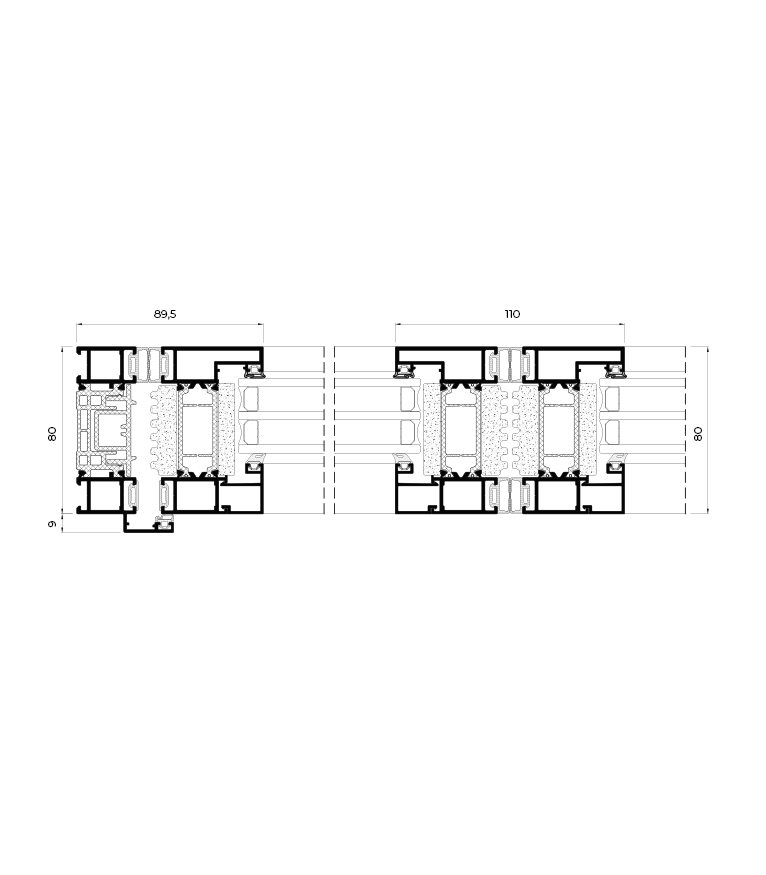

Sightlines
Frame 80 mm
Sash 80 mm
Profile thickness
1,8 mm
Polyamide strip length
Frame 20 mm
Sash 30 mm
Maximum sash dimensions
Width (L) 1200 mm
Height (H) 3000 mm
Maximum sash weight
120 Kg
Consult maximum weight and dimensions according to typologies.
Finished
Possibility of bicolor systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
