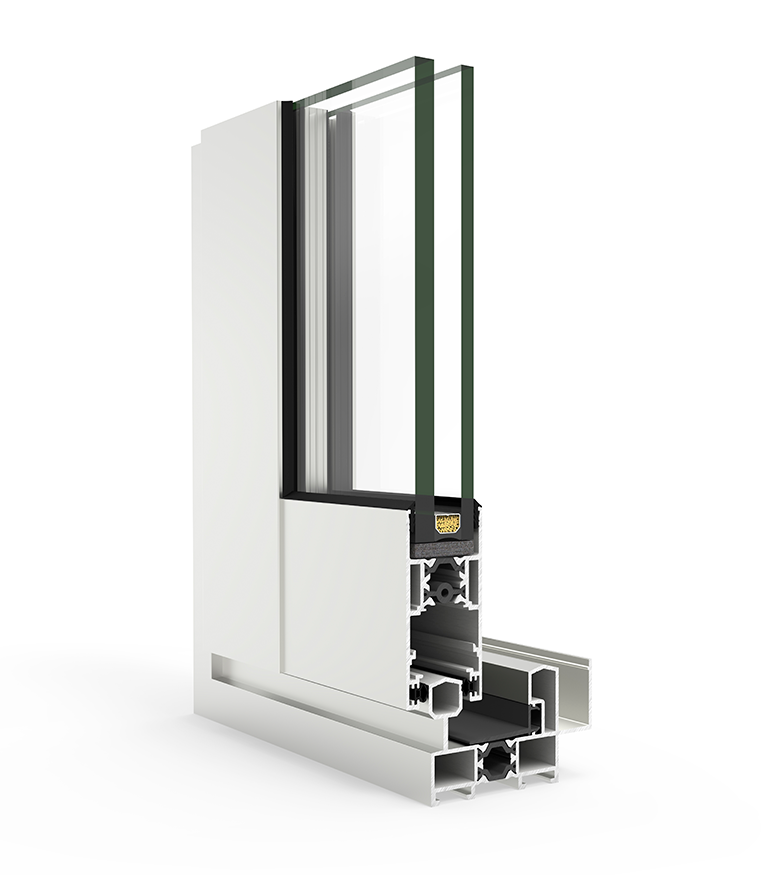

Standard sliding system with great versatility and straight or curved aesthetics, 45º or 90º sash encounters and various frames according to each configuration. The 45º and 90º sash encounter version allows the total opening of the span with the pocket possibility solution, completely concealing the sashes in the masonry wall’s chamber. Furthermore, this version allows the integration of the solar protection Tamiz system on the same frame.
Glazing
Max. 26 mm
Min. 9 mm
Opening possibilities
Sliding of 2, 3, 4 & 6 sashes
Possibility 3 rails
Pocket system

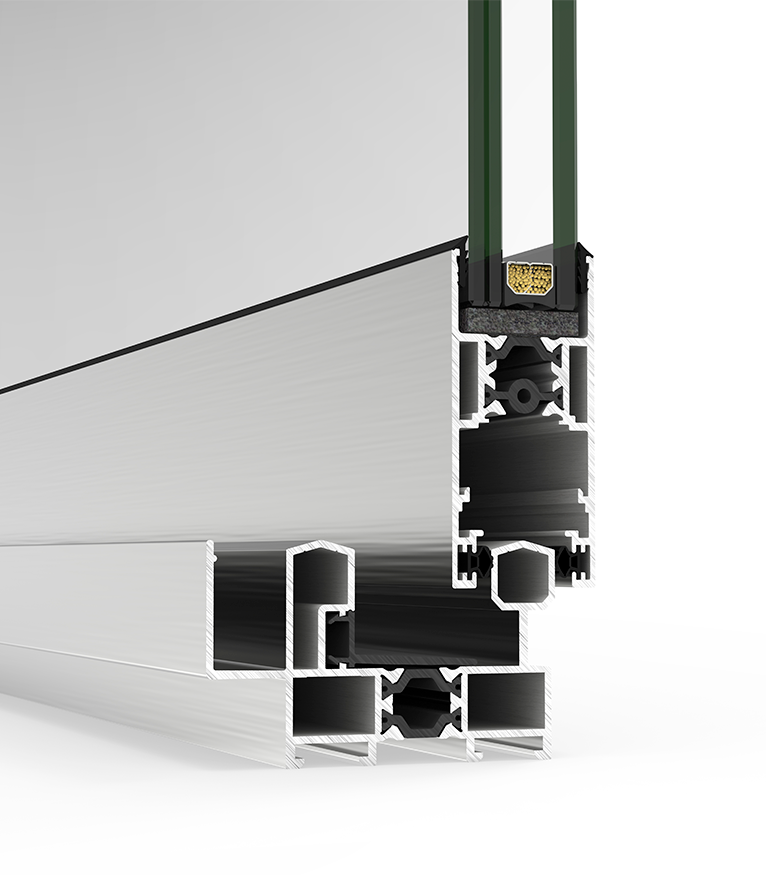

Sections
Frame 60, 65, 67 & 80 mm
3 rails 106 & 126 mm
Sash 33 & 37 mm
Profile thickness
Window 1.5 mm
Polyamide strip length
From 14.6 to 20 mm
Maximum dimensions/sash
Width (L) = 2,200 mm
Height (H) = 2,600 mm
Aesthetic possibilities
Sash: Straight or curved
Bead: Straight or curved
Maximum weight/sash
45º sash encounter 100 kg
90º sash encounter 200 kg
Please consult regarding maximum weight and dimensions for other opening types
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
