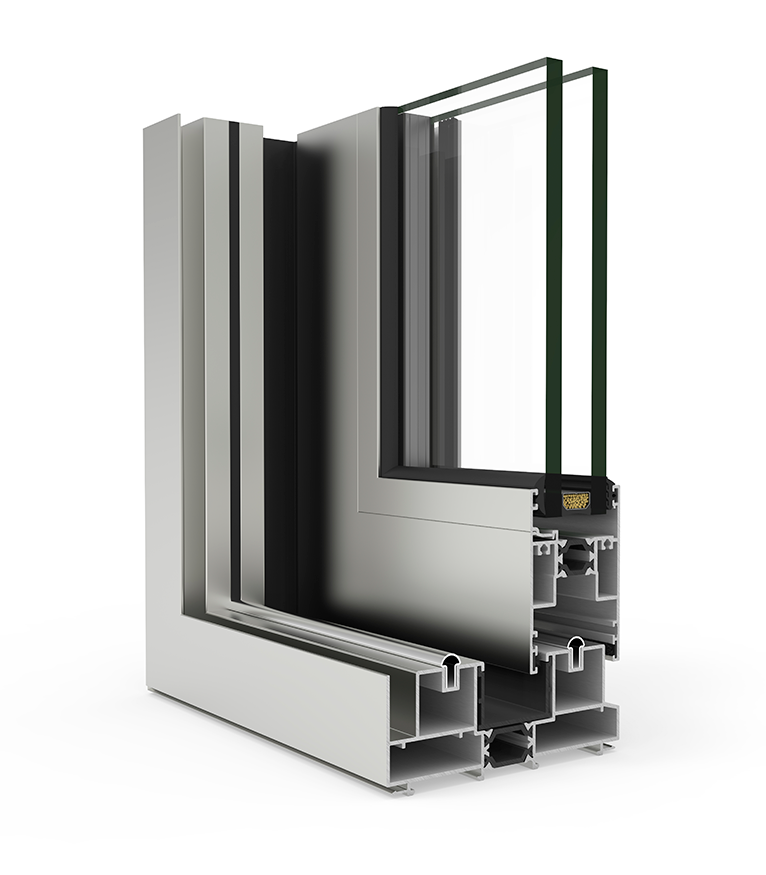

This sliding system, available both in slide and lift & slide versions, becomes an ideal solution for closing large spans.
It presents modern aesthetics in straight lines, a reduced interlock section and large glazed surfaces that ensure bright and comfortable areas, due to its thermal and acoustic performance.
Possibilities
» Accessibility
Glazing
Max. 36 mm
Min. 26 mm
Opening possibilities
Sliding of 2, 3, 4, 6 & 8 sashes
Possibility of 1 rail (1 sash+ 1 fixed)
Possibility of 2, 3 & 4 rails
Possibility pocket solution 1, 2, 3 & 4 sashes

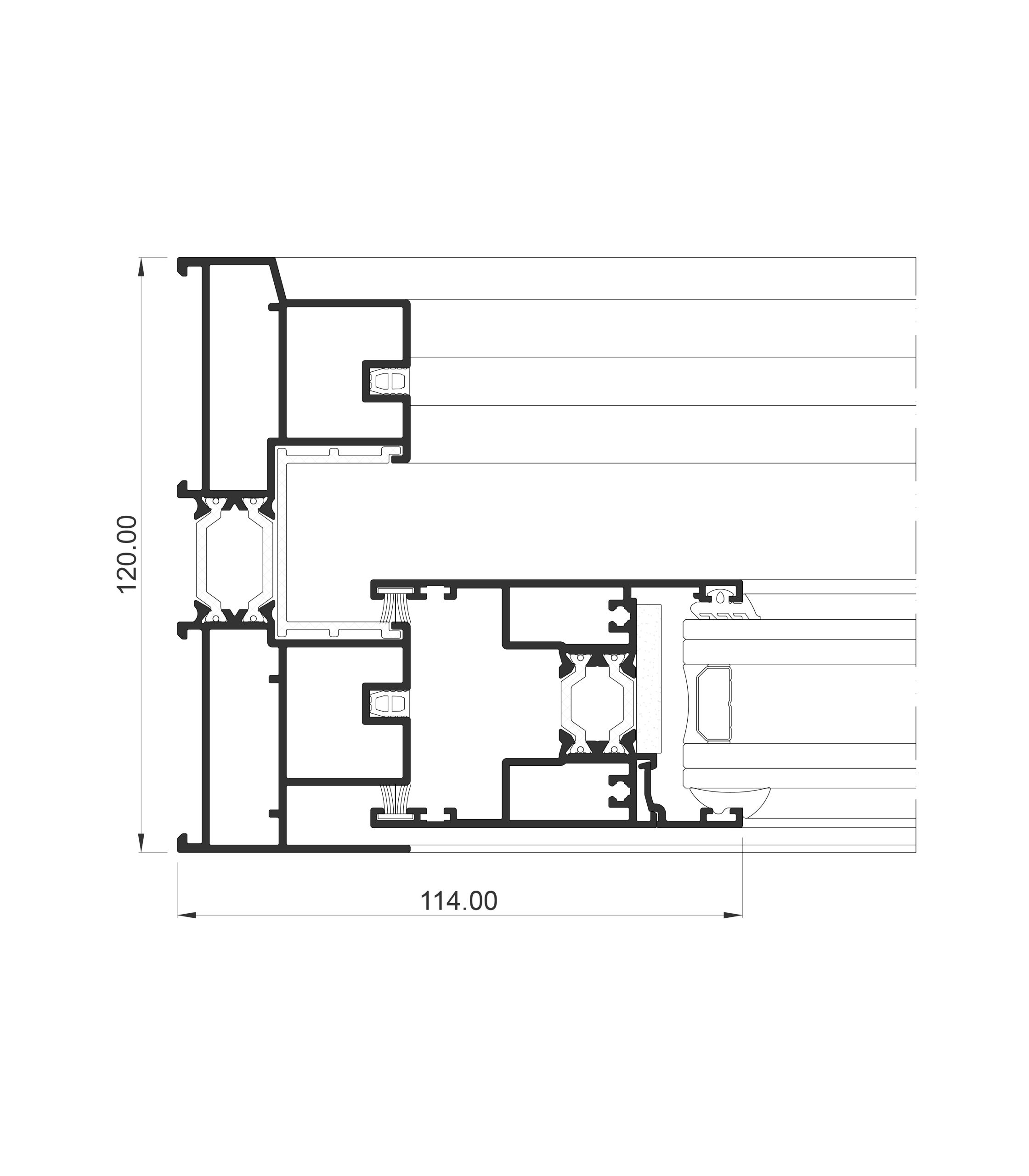

Sections
Frame 120 & 115 mm
Sash 50 mm
Profile thickness
Balcony 1.5 mm
Polyamide strip length
20 & 25 mm
Maximum dimensions/sash
Width (L) = 2,500 mm
Height (H) = 3,000 mm
Maximum weight/sash
Slide: 280 Kg
Lift & Slide: 300 Kg
Please consult regarding maximum weight and dimensions for other opening types
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
